SHIMANO DEORE XT - HOLLOWTECH II - MTB Crankset - 172mm Q-Factor - 52mm Chainline - 1x12-speed

The Shimano XT FC-M8100 1 x 12-speed crank with 172 mm Q-factor, 52 mm chainline and 142 / 148 mm O.L.D stands for highest drive efficiency at low weight. It offers optimum power transmission and maximum speed for the new XT system, which only use 1 chainring.

The new XT 1x12-speed cranks are characterised by DYNAMIC CHAIN ENGAGEMENT+ technology, whose special high-precision tooth profile ensures that the chain finds optimum grip on the upper part of the chainring on rough terrain, but detaches equally well from the chainring at the bottom, thus ensuring efficiency, smoothness and low noise of the drive. The cranks are equipped with a direct-mount system for quick and safe assembly of the chainrings, enabling chainrings to be changed in no time at all. The crank is available in boost and non-boost specifications.

The original mountain bike group continues its legacy of remaining the standard for mountain bikers everywhere. Nearly three decades in, the DEORE XT brand is defined by its trail-tested durability, reliability and performance. Recognizing that today’s mountain bikers are riding faster and confidently on more technical terrain, the legacy of DEORE XT is more important than ever.

Features:

• Special MTB gear teeth profile improves chain engagement and retention
• Rigid and lightweight design for aggressive trail riding
• Hollow forged crank maximizes power transfer while limiting weight
• Q-Factor: 172mm
• Chainline: 52mm

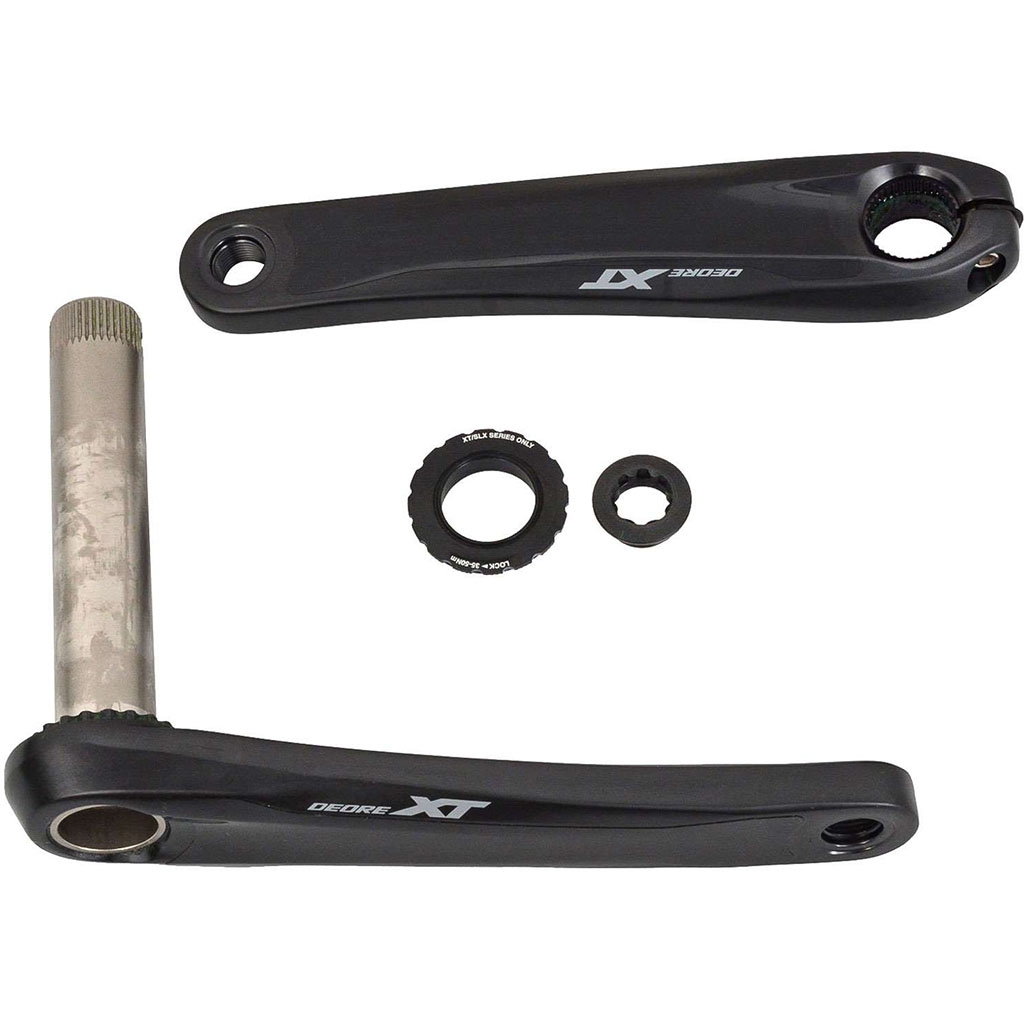

• Scope of supply: 1 x Shimano Deore XT Crank Direct Mount 1x12 FC-M8100-1 (without chainring, without bottom bracket)

Technical Specifications:

• Model No.: FC-M8100-1 (DEORE XT M8100 Series)
• Intended use: MTB
• Material: Aluminium (Crankarm), Steel (Axle)
• Rear Speed: 12
• Compatible Chain: HG 12-Speed
• Hollowtech II: 24 mm spindle dia
• Crank lengths: 165 mm, 170 mm, 175 mm or 180 mm
• Spider / chainring mount: Shimano Direct Mount
• Q-factor: 172 mm
• Compatible Bottom Bracket: BSA, BB30, Pressfit30, BB92 (optional, not included)
• Average Weight (g): 608g(28T), 622g(30T), 620g(32T), 633g(34T), 651g(36T)
