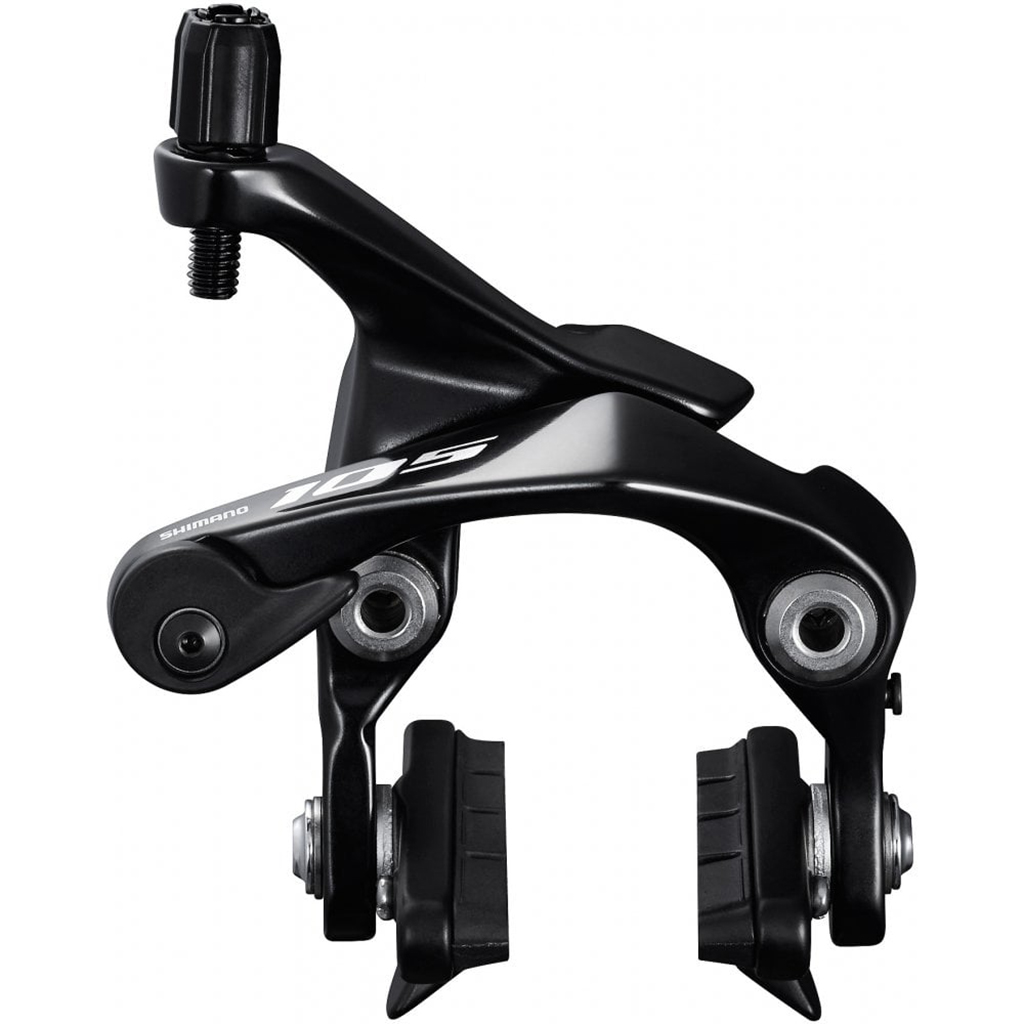

SHIMANO 105- Rear Seat Stay Mount - Rear Brake Caliper - SLR-EV - Rim Brake

The new 105 R7000 components are not only visually oriented towards their big siblings Dura Ace R9100 and Ultegra R8000, but also from a technical point of view some features of the top groups have been adopted. With a variety of translation options and the choice between rim and disc brakes, it is just as suitable for everyday drivers as for racing use.

The BR-R7010 brake is characterized by its balance in terms of stiffness, weight and braking power. The brakes are connected to the frame with 2 screws on the brake arms via the direct mount brake mountings. This design reduces the number of moving parts on the brake. This makes the response more sensitive and the braking power increases. With a spread between the thighs to 51 millimeters, the brake is suitable for 28-millimeter-wide rims and 28C tires.

The brakes are equipped with R55C4 brake shoes with aluminum alloy padding.

Features:

• Integrated braking performance
• Sleek low-profile caliper design
• Comfortable rough road riding with larger tire sizes
• Compatible with wider 28C tire size
• Intuitive braking control
• Smooth and light operation
• SLR-EV

Specs:

• Material: Aluminium
• Technology: SLR EV, Dual Pivot
• Version: for Resr Wheel (Seat stay mount)
• Compatibility Brake Lever: ST-R7000
• Leg dimension: 51 mm
• Max. Tire size: 28C
• Rim width: 20.8-28 mm
• Brake Shoes: Shimano R55C4
• Brake pads: for aluminium rims
• Color: Black
• Weight: 174g (manufacturer)

Technical Specifications:

• Model No.: BR-R7010-RS
• Series: SHIMANO 105 R7000 Series
• Average weight: 174 ( /pc)
• Type: Direct mount type
• Reach (mm): 51
• Brake shoe (Standard): R55C4
• Brake shoe (Optional choice): R55C4 carbon, R55C4-A carbon, R55CT4
• Compatibility: SLR-EV
• Maximum tire size: 28C
• Rim width (mm) : 20.8-28
• Cartridge shoe holder: ✔
