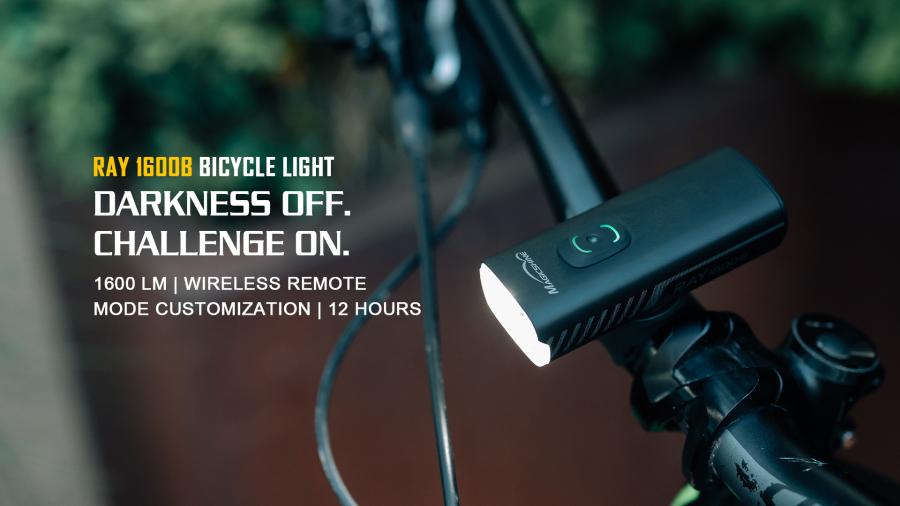

The RAY 1600B is designed to provide exceptional illumination, ensuring your visibility and safety during evening commutes and late-night trail rides. This is made possible by its innovative double lens, which offers two beam options. The floodlight beam creates a wide and uniform carpet of light, extending from the front wheel all the way to the horizon, while the combined beam of floodlight and spotlight provides extensive coverage and a greater distance, enabling you to navigate even the most challenging terrain with ease. By connecting the light to the Magicshine App, you can customize the lighting modes and adjust brightness settings to cater to different cycling scenarios. With the brightness sensor activated via the App, you will always have sufficient light, whether it's daytime or nighttime. Additionally, the vibration sensor can be easily accessed and adjusted through the App interface.

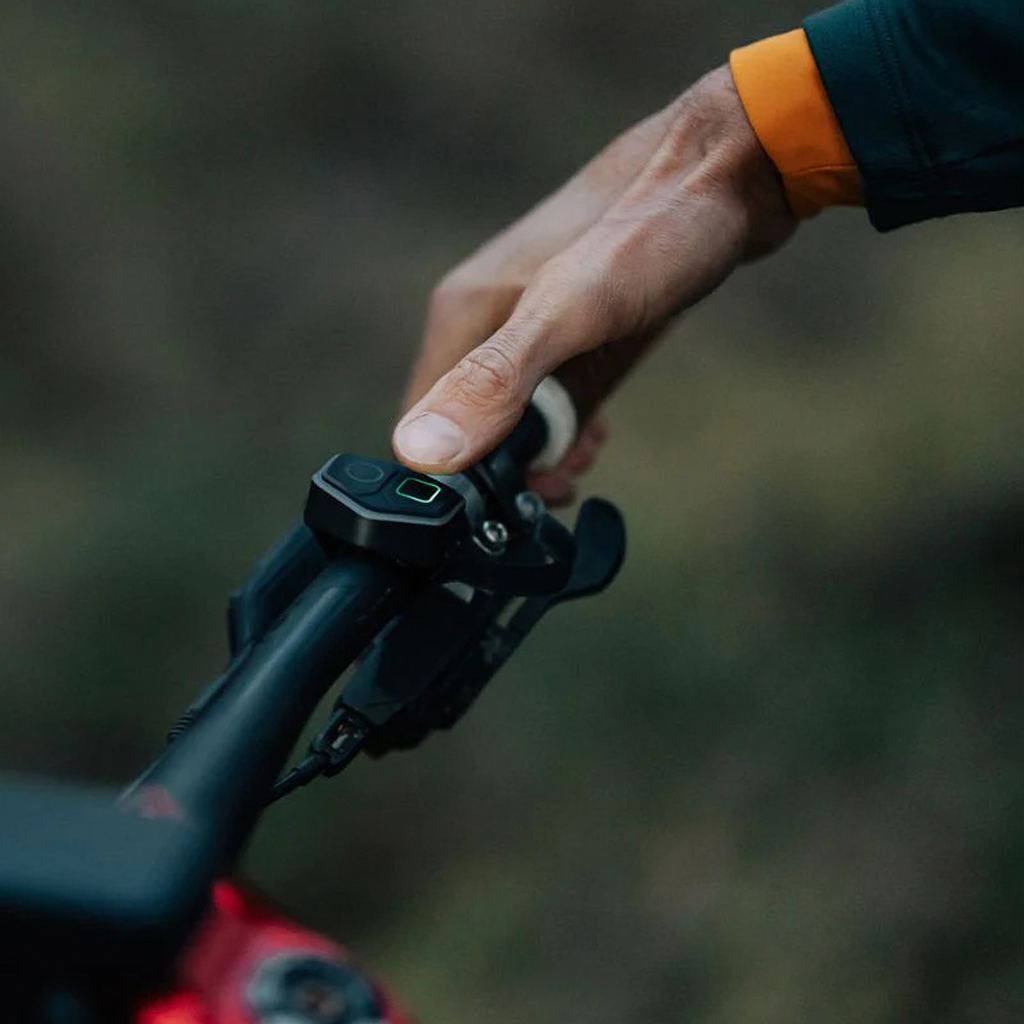

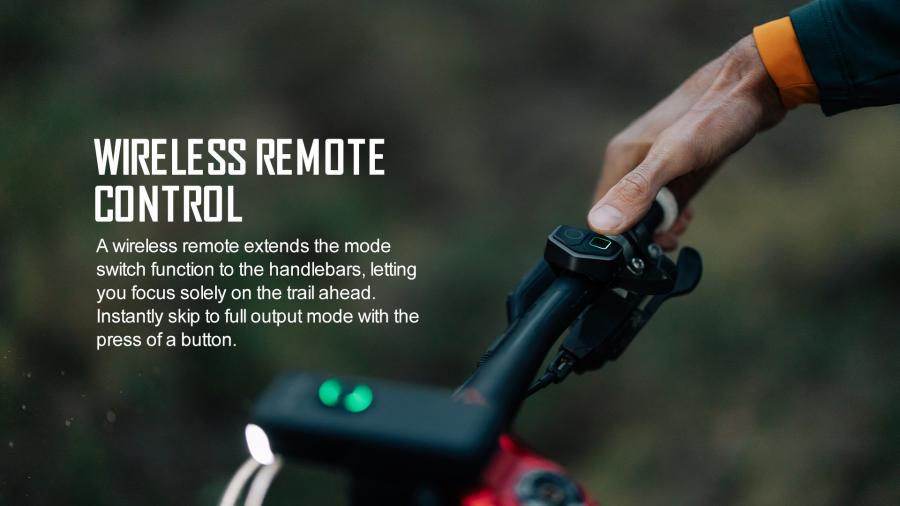

Experience hassle-free light control with the RAY 1600B's convenient wireless remote, which allows you to switch between modes without taking your hands off the handlebar, keeping your focus solely on the trail ahead. With the press of a button, you can easily activate the full output mode, providing you with ample illumination to confidently navigate dark roads. The up-down button located on the light unit makes it effortless for you to adjust the brightness and find the perfect level of illumination for your needs.

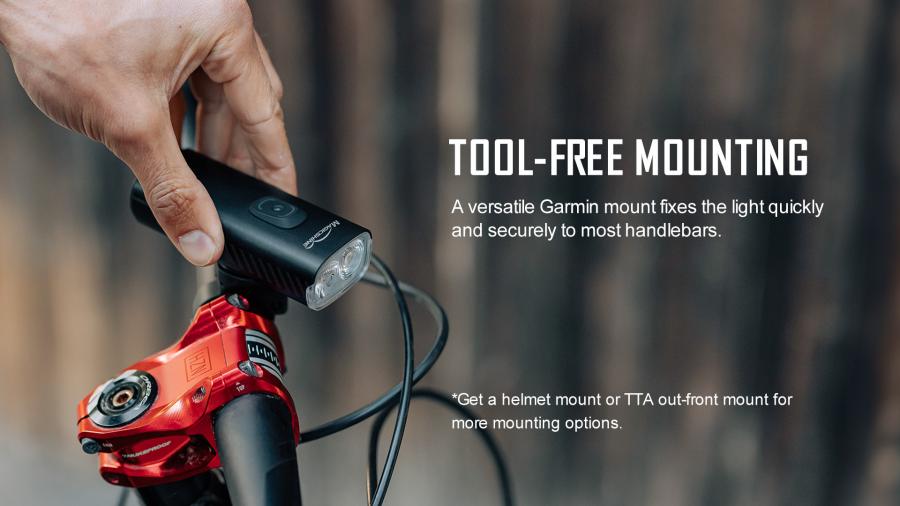

The RAY 1600B is powered by two integrated 18650 batteries with a total capacity of up to 5200mAh, providing an impressive maximum runtime of 20 hours. The integrated USB-C charging and discharging port enables convenient recharging of the batteries while also serving as a power source for your bike computer, smartphone, or other devices while on the move.  With its IPX6 waterproof rating, the RAY 1600B is designed to withstand even heavy rain. When it comes to mounting, the Garmin quarter-turn mounting system allows for quick and secure attachment to most handlebars.

Whether commuting through busy city streets or navigating tough terrain, the powerful RAY 1600B has you covered and propels you over every challenge.

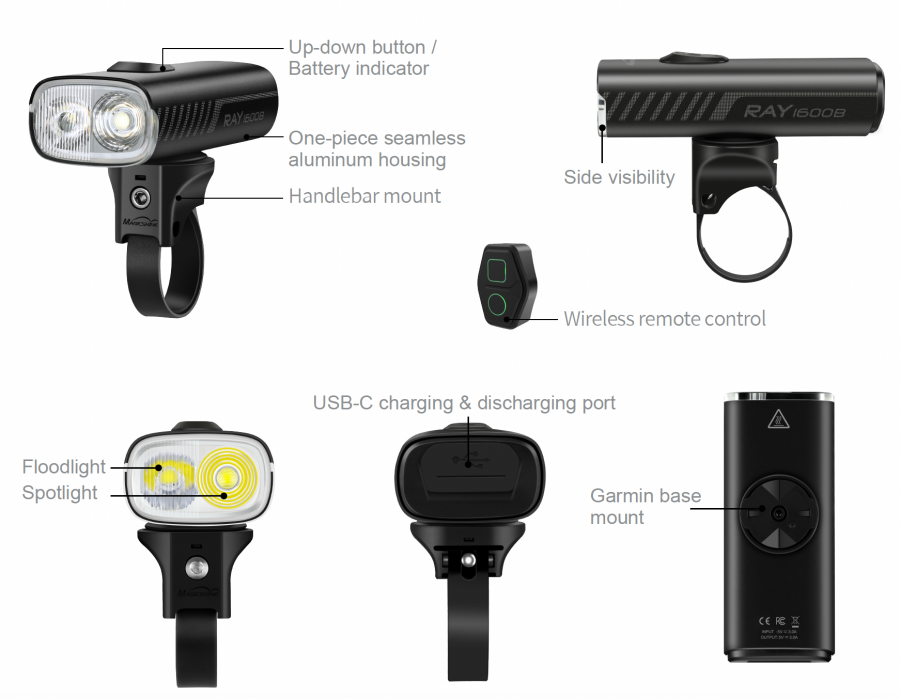

Features:

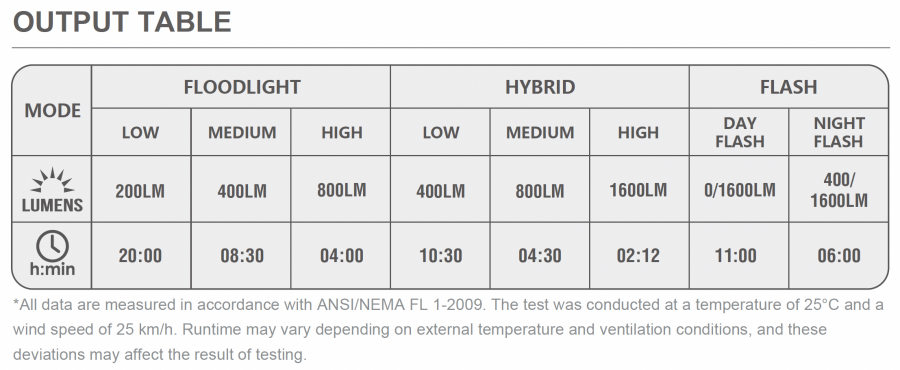

• Equipped with two high-power LEDs, max output of 1600 lumens

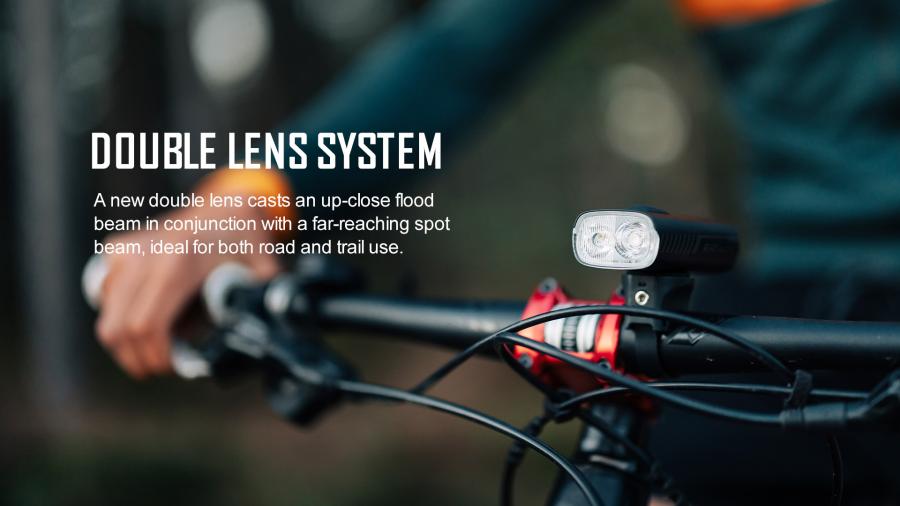

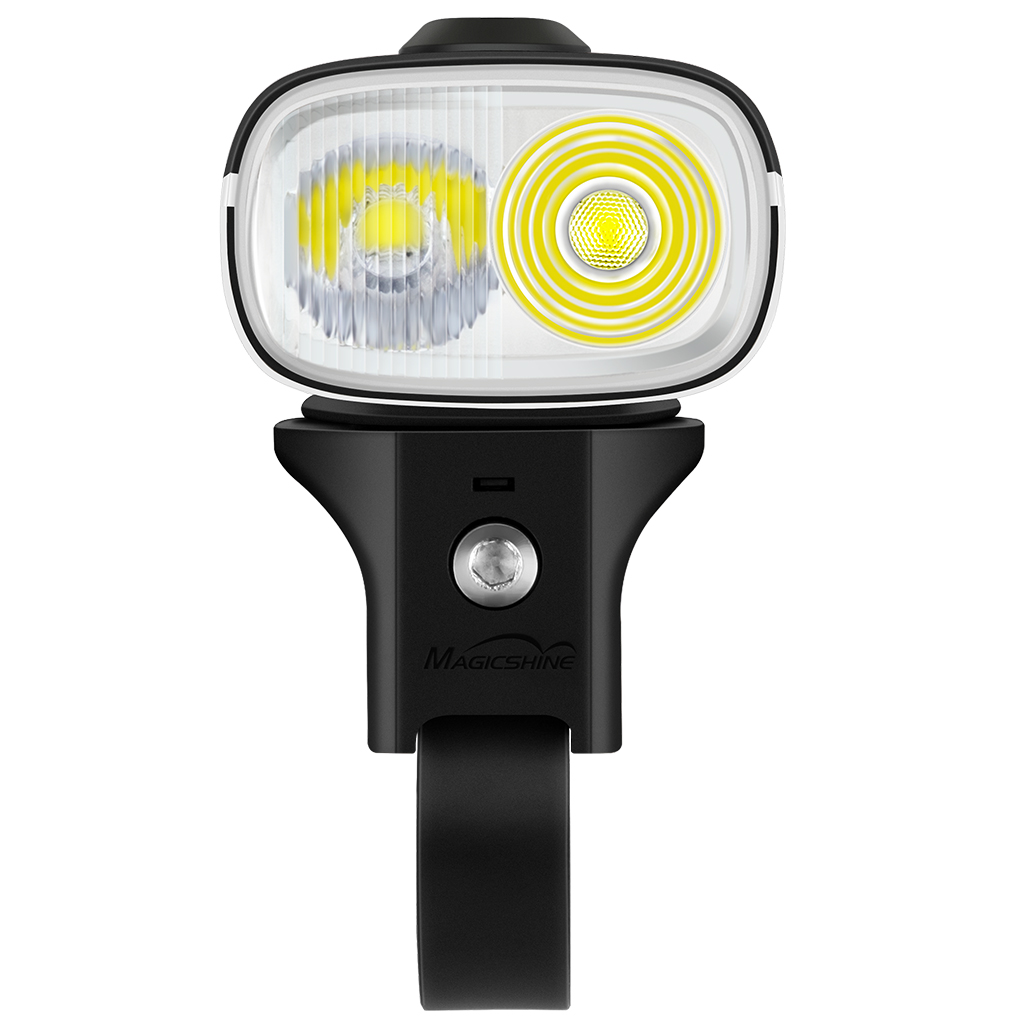

• Unique combination of close-range floodlight and far-reaching spotlight beam
• Customize lighting settings for different cycling scenarios through Magicshine App
• Wireless remote control allows you to jump to full output mode with a single push
• Built-in brightness/vibration sensor, can be turned on/off through the App
• Powered by two 18650 integrated batteries with a capacity of up to 5200mAh

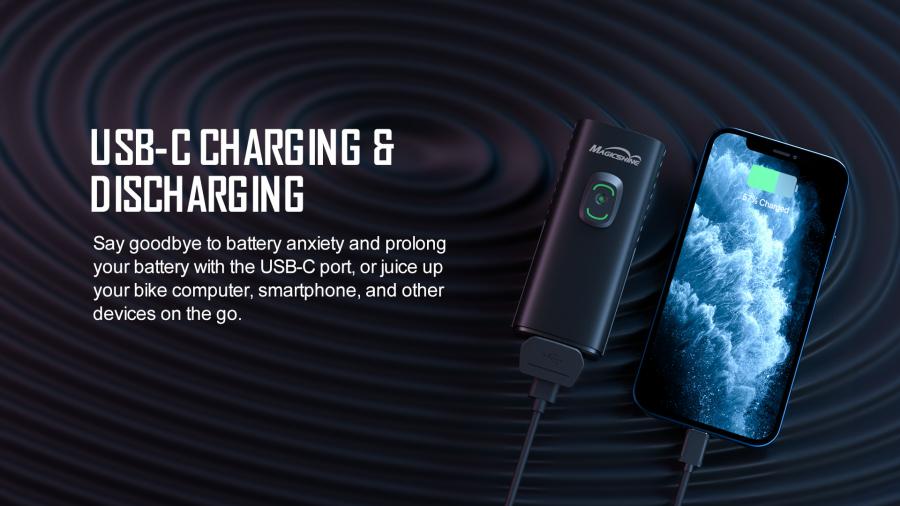

• USB-C fast charging and discharging
• Up-down brightness control with accurate battery display

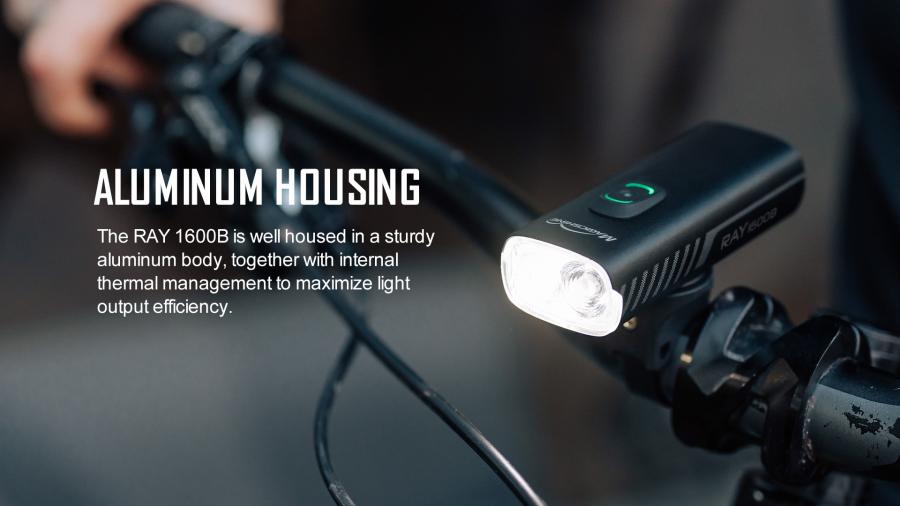

• Internal thermal management system coupled with aluminum housing ensure efficient heat dissipation

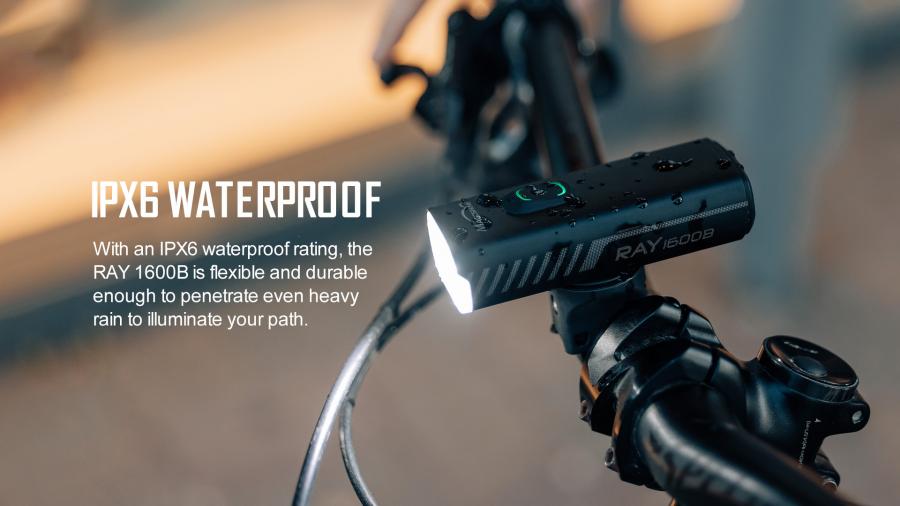

• IPX6 waterproof rating, able to hold up to all weather conditions

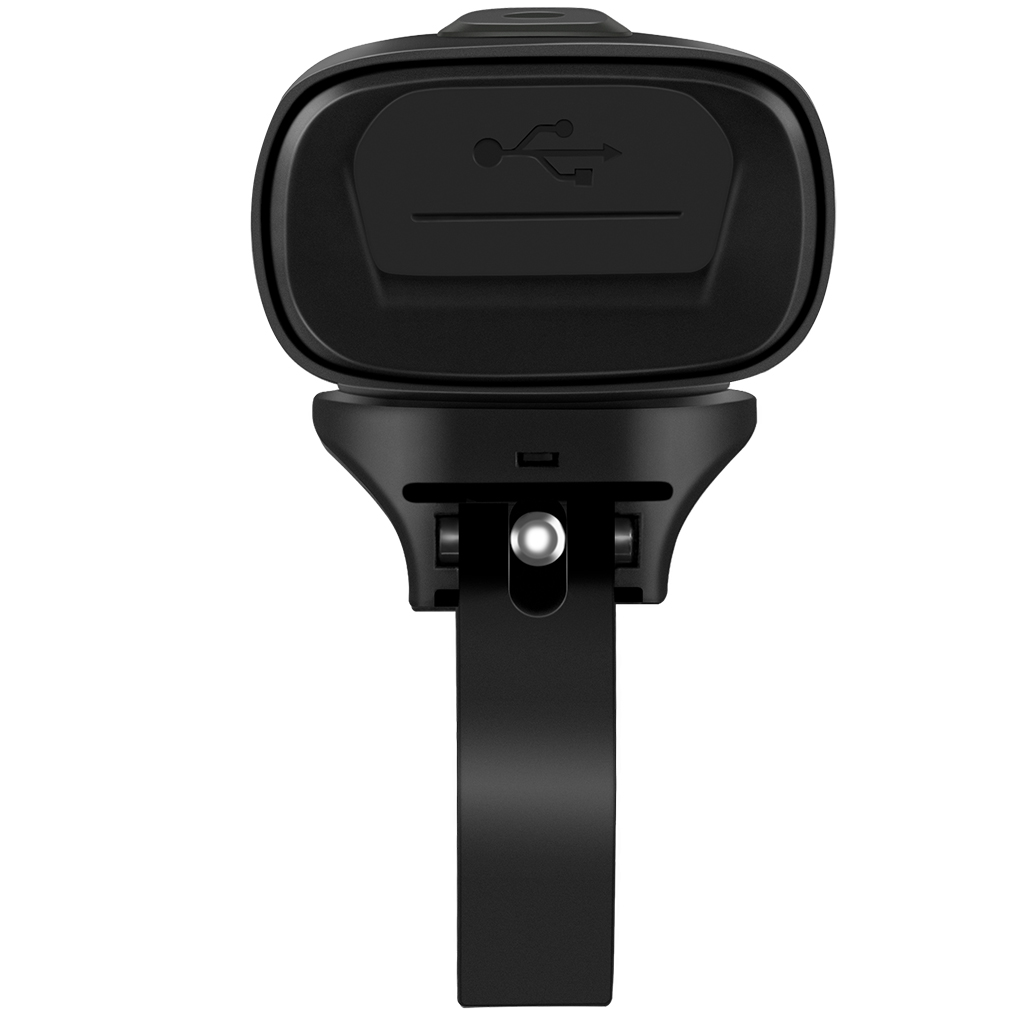

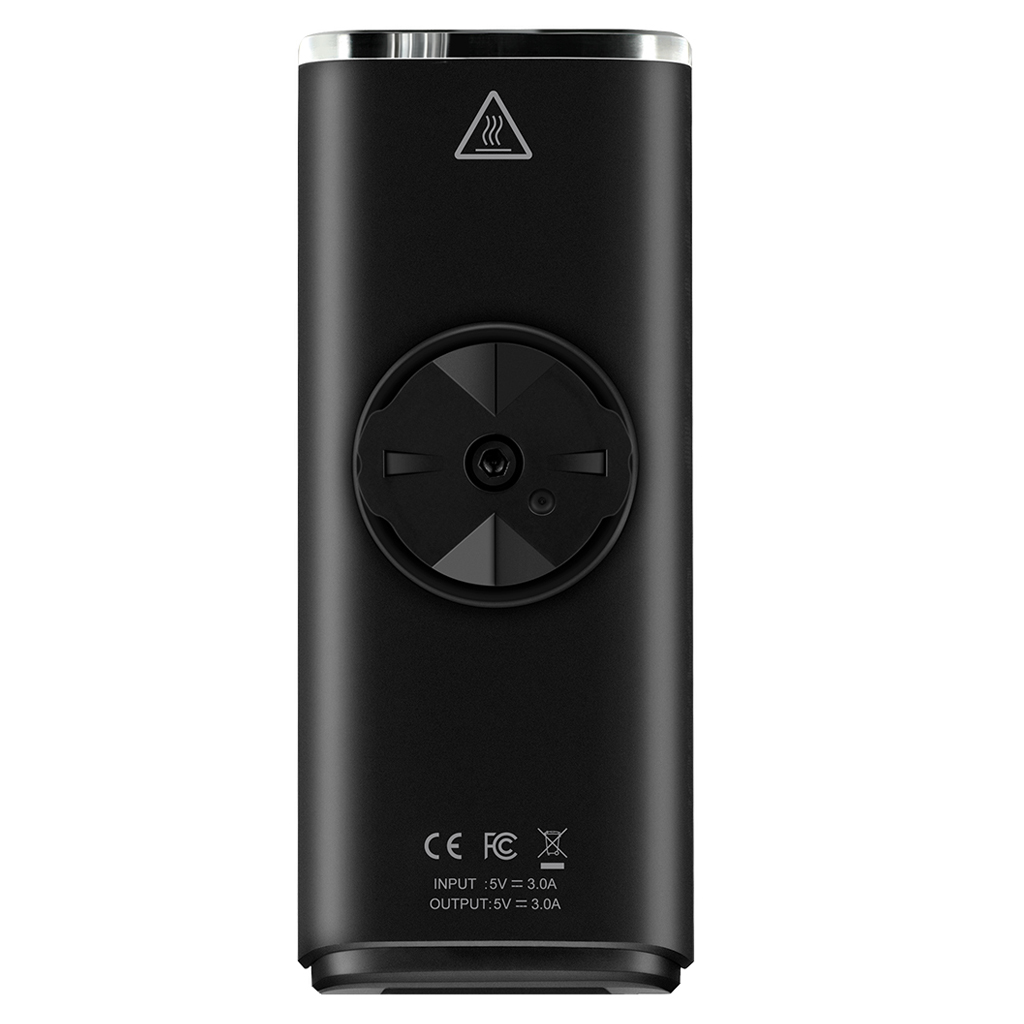

• Universal Garmin quarter-turn style mount, easy to put on and take off
• Fit 28mm, 31.8mm and 35mm handlebars, including aero options
• Warranty: 1 year

Operating Instructions:

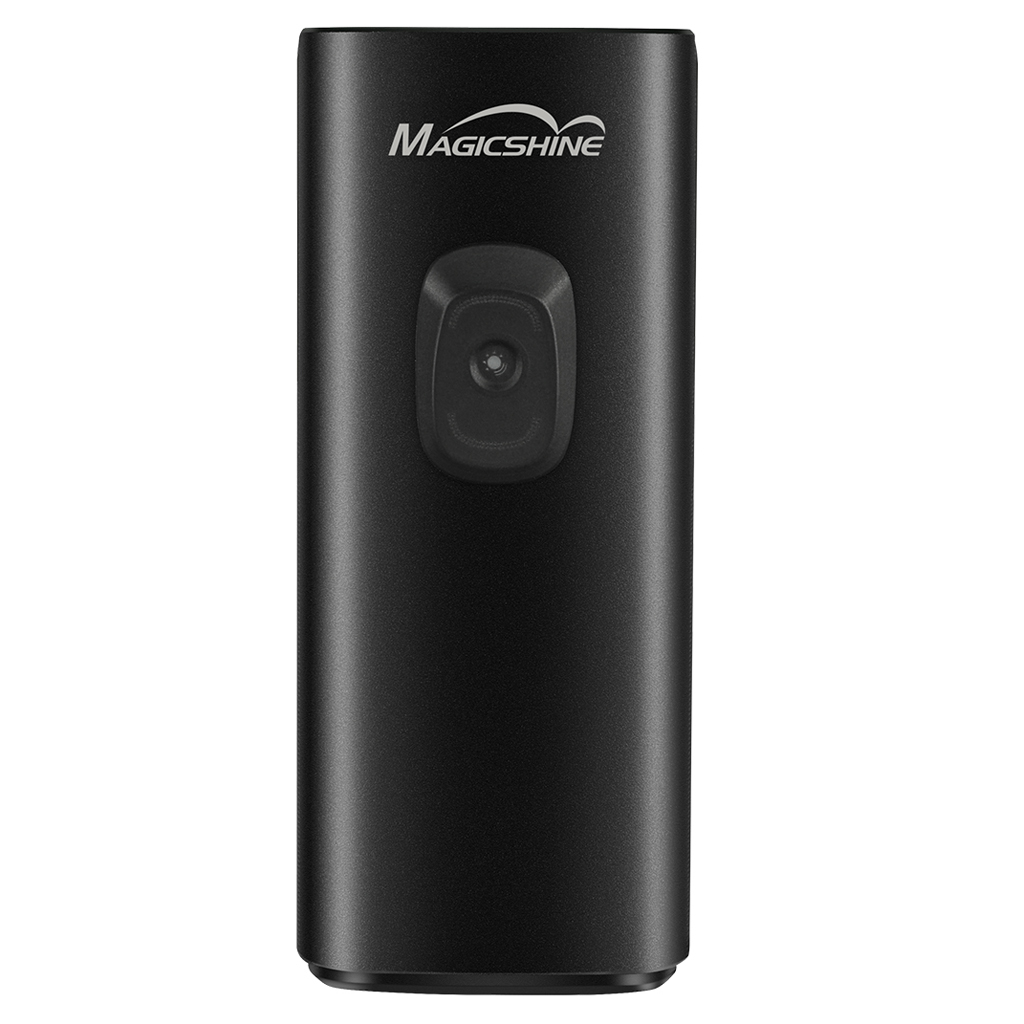

Switch - A switch on the light unit and a wireless remote control all modes and brightness.

On/Off - Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

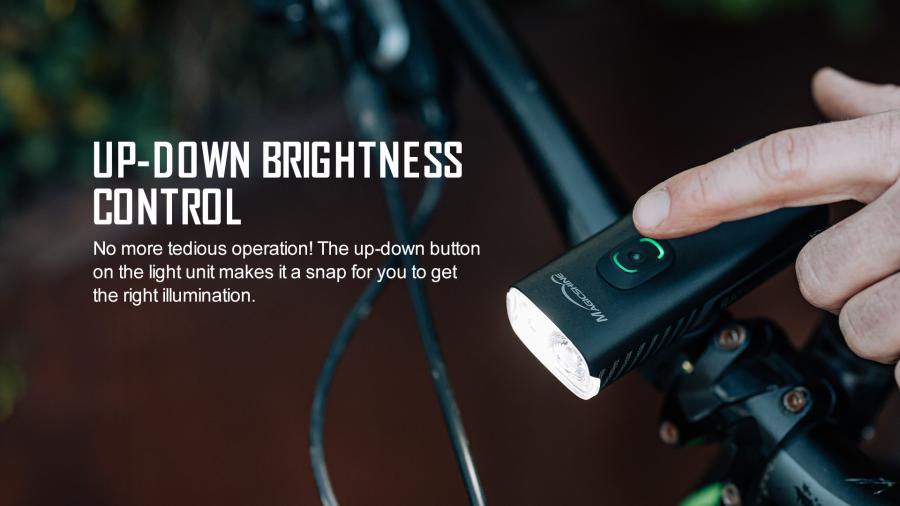

Adjust Brightness - When the light is on, click the up/down button to change brightness level.

Change Mode- Double click the button to change between floodlight mode and hybrid mode. (Note: The Day flash and Night flash can only be accessed through the remote control.)

Lock/Unlock - When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.
*In lockout mode, the light will not light up and the indicator flashes red quickly.

Vibration Sensor - The light will turn off automatically after 2 minutes of inactivity and automatically light up with any vibrations. The light will automatically turn off if no vibration is detected within 30 minutes.
*The vibration sensor is off by default, activate it through the App.

Brightness Sensor - During the daytime, the light will automatically turn to Low brightness in floodlight mode. At nighttime, the light will automatically return to the brightness that it's in when turned on.
*The light sensor is off by default, activate it through the App.

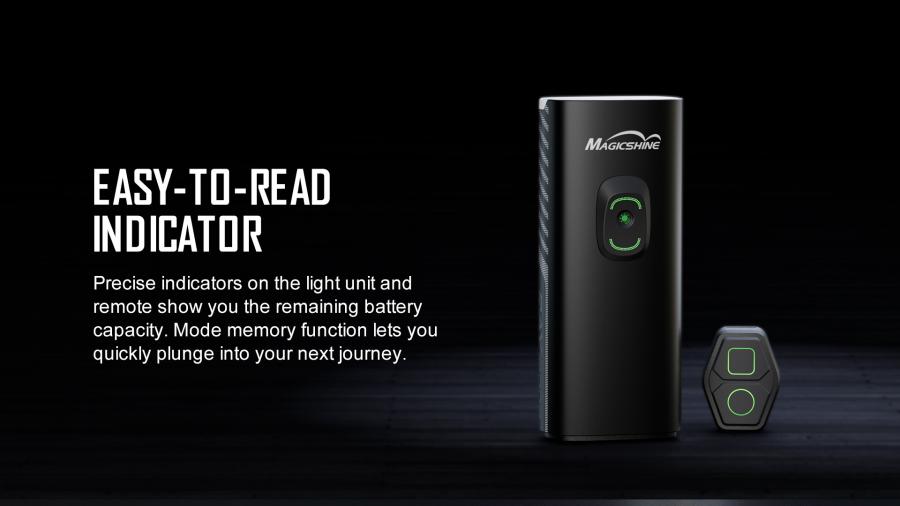

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

Wireless Remote Control:

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.
• On/Off: Press and hold the "○"/"□" button for 1 second
• Adjust brightness: Click the "○" button
• Change mode: Double click the "○" button
• Flash mode: Double click the "□" button
• Full output mode (1600LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode
• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally

Connect with the App:

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.
• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M2-B0". Click "Add", then click "Connect the device".

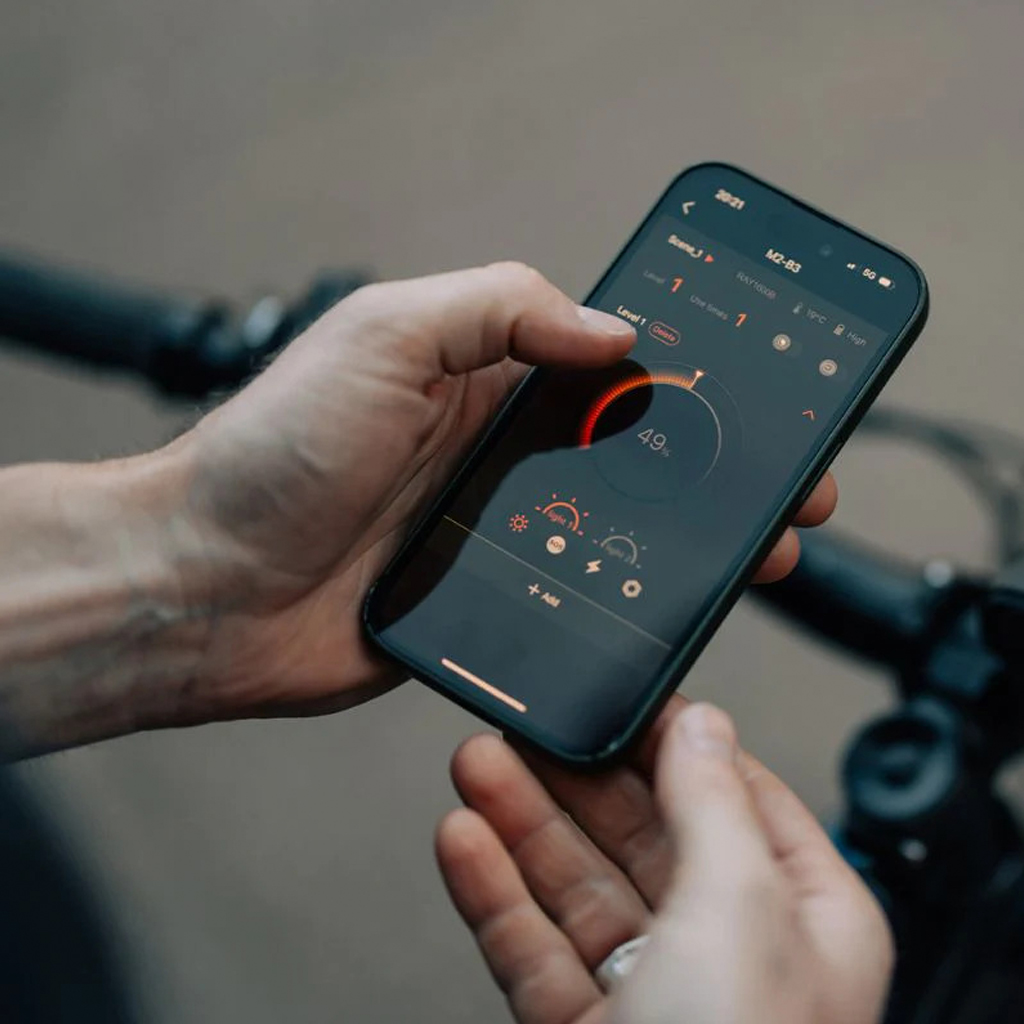

App Settings:

• Click "Add" at the bottom to enter the "Device Settings" interface
• Click "Mode 1" or "Mode 2", you can customize "Always On", "SOS", "Blinking", and "Warning" as well as their corresponding brightness
• Up to 20 customized modes are supported.
• When you delete all customized modes in the App, the light will return to the factory default mode
