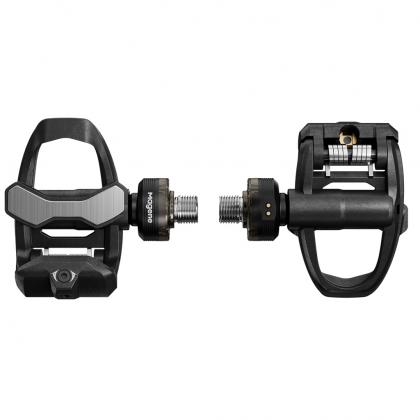

Magene P715 Pedal-based Power Meter - Lead You to the Ridge of Cycling!​​

Meet Magene P715 pedal-based power meter — built to push your limits and go the distance. Applied by consistent cutting-edge techniques, P715 pedal-based power meter help you elevate power training performance and lead you to the ridge of cycling. Magene always stands with you to pursue breakthroughs of power.

Take control of your training — and feel the difference in every pedal stroke.

Features:

• ±1% Power Accuracy: Dual-sided measurement with gyroscope and temperature compensation for consistently accurate data.
• 120-Hour Battery Life: Rechargeable lithium battery with magnetic charging — up to 120 hours on a single 3-hour charge.
• 7 Advanced Training Functions: Boost your efficiency and performance with smart, pro-level metrics.

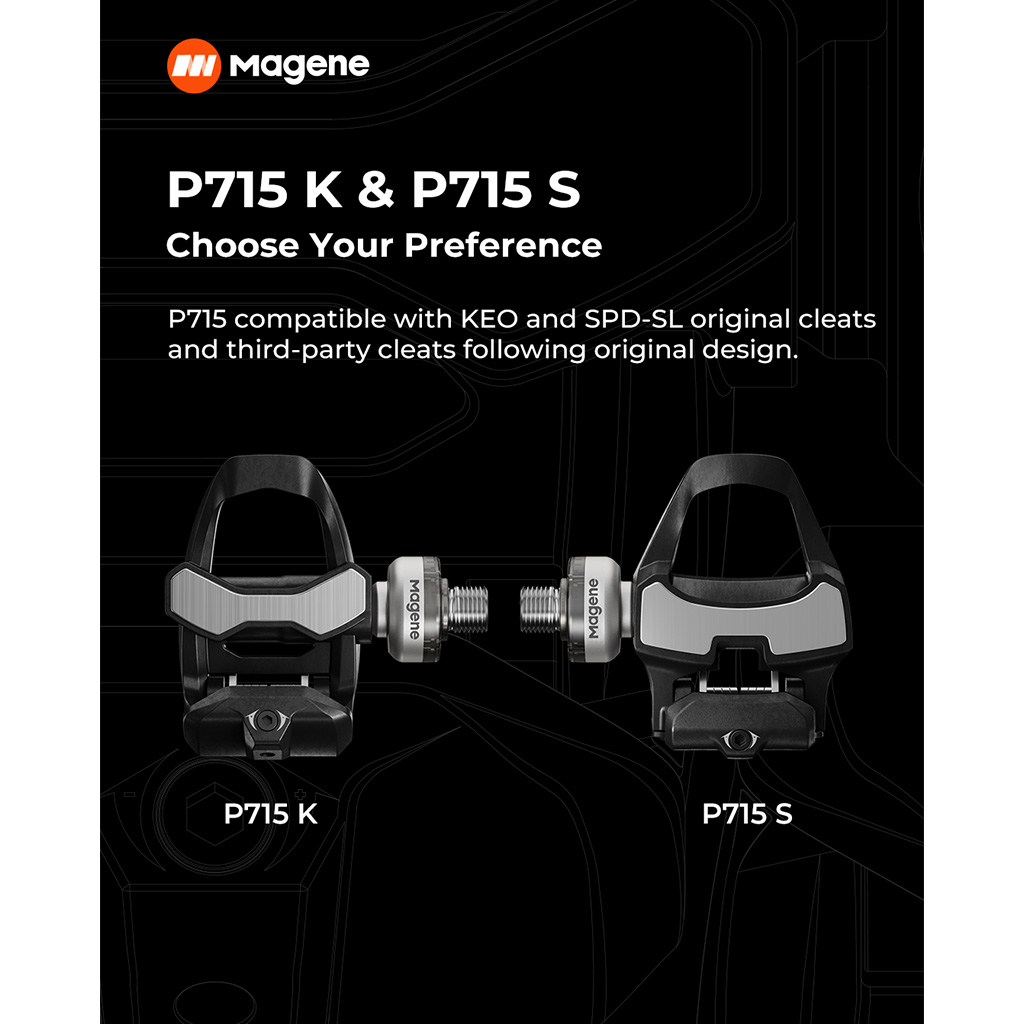

• Two Versions Available: Choose P715 K (KEO) or P715 S (SPD-SL) to match your preferred cleat system.
• Quick Installation: Mounts in under a minute using a standard wrench.
• Lightweight & Durable: Only 157g per pedal, built with carbon fiber and stainless steel.

Specifications:

• Model: P715-K (Keo Compatible), P715-S (SPD-SL Compatible)
•  Weight: P715-K: 314g // P715-S: 318g
• Cleat Type: KEO // SPD-SL
• Power Accuracy: ±1%
• Q-Factor: 55mm
• Stack Height: P715-K: 11mm // P715-S: 13mm
• Power Range: 0~2500W
• Cadence Range: 20~240RPM
• Data Function: Power, cadence, left and right balance, torque effectiveness, pedaling smoothness, power phase, riding position
• Calibration: Automatic calibration and manual calibration
• Wireless Protocol: ANT+, Bluetooth
• Waterproof Grade: IPX7
• Working Temperature: -20℃-50℃
• Battery Life: 120 Hours
• Charging: Magnetic Charging
• Compatible Bike Computers: Compatible with mainstream bike computers, including Magene, Garmin, Wahoo, iGPSPORT, Bryton, XOSS, BLACK BIRD, etc. (*The power phase and riding position functions are only available to bike computers supporting above functions, such as GARMIN®. Magene will update bike computer soon to support these functions.)
• Compatible Software: Magene Utility
• Warranty: 2 years

In the Box:

• Power Meter Pedal x2
• Crank Washer x2
• Charging Cable x1
• Quick Start Guide

±1% Consistent Power Accuracy, Record Your Every Effort Precisely

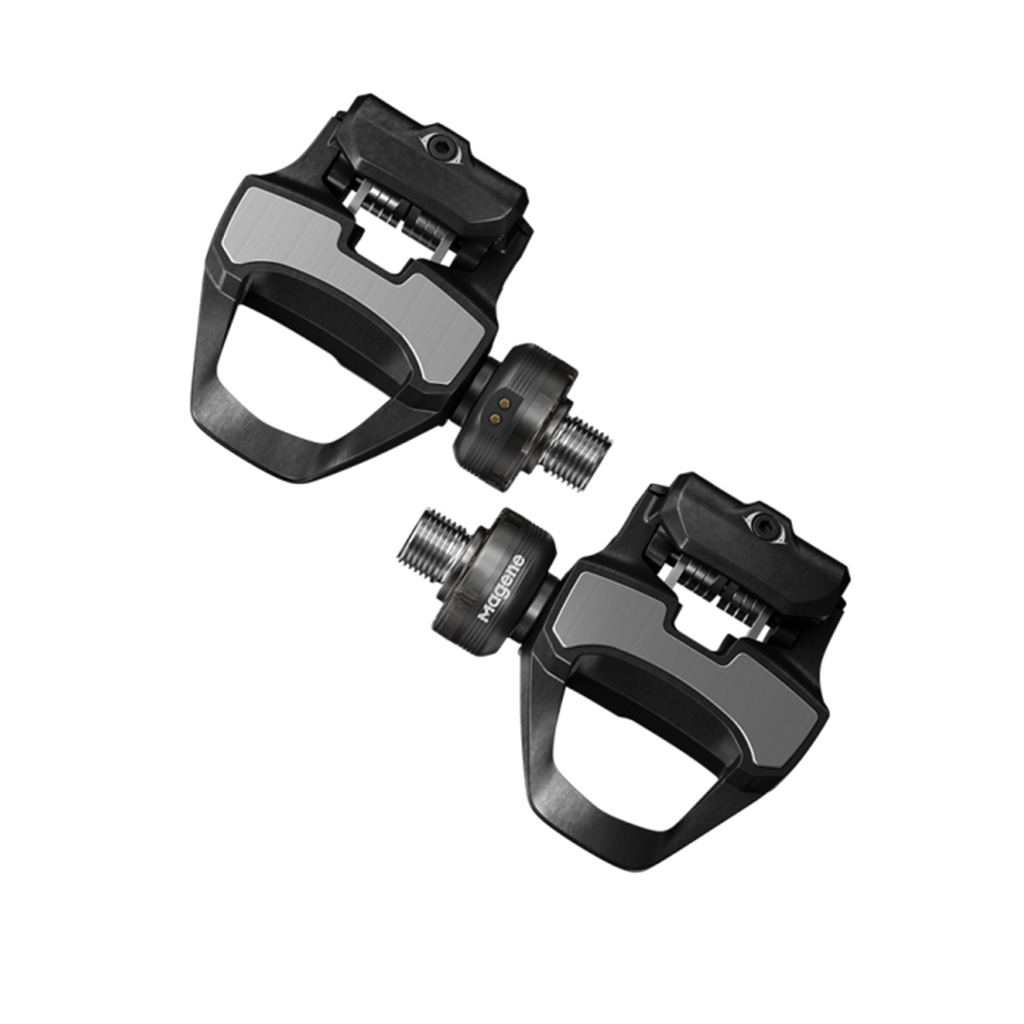

Dual-sided Power Meter Spindles - With embedded power meter spindles, the power meter module is closer to where you output the watts, thus reducing loss and errors during transmission of watts. P715 pedal-based power meter measure your dual-side power simultaneously, providing you with direct and authentic watts data on both legs.

Embedded Gyroscope - Depending on your pedaling habits, your pedaling speed will be very different at every angle and second. The gyroscope can measure the real-time angular velocity and accurately calculate the instantaneous power at each angle, greatly improving the power accuracy during unstable cycling.

Temperature Compensation - Changes in altitude and temperature can affect strain gauge, which will affect power accuracy in turn. To eliminate this effect, temperature compensation is introduced. Power algorithm adjusts according to altitude and temperature, thus providing consistent and accurate watts data in extreme occasions.

120 Hours Long Battery Life, Fuel Your Enduring Cycling Journey

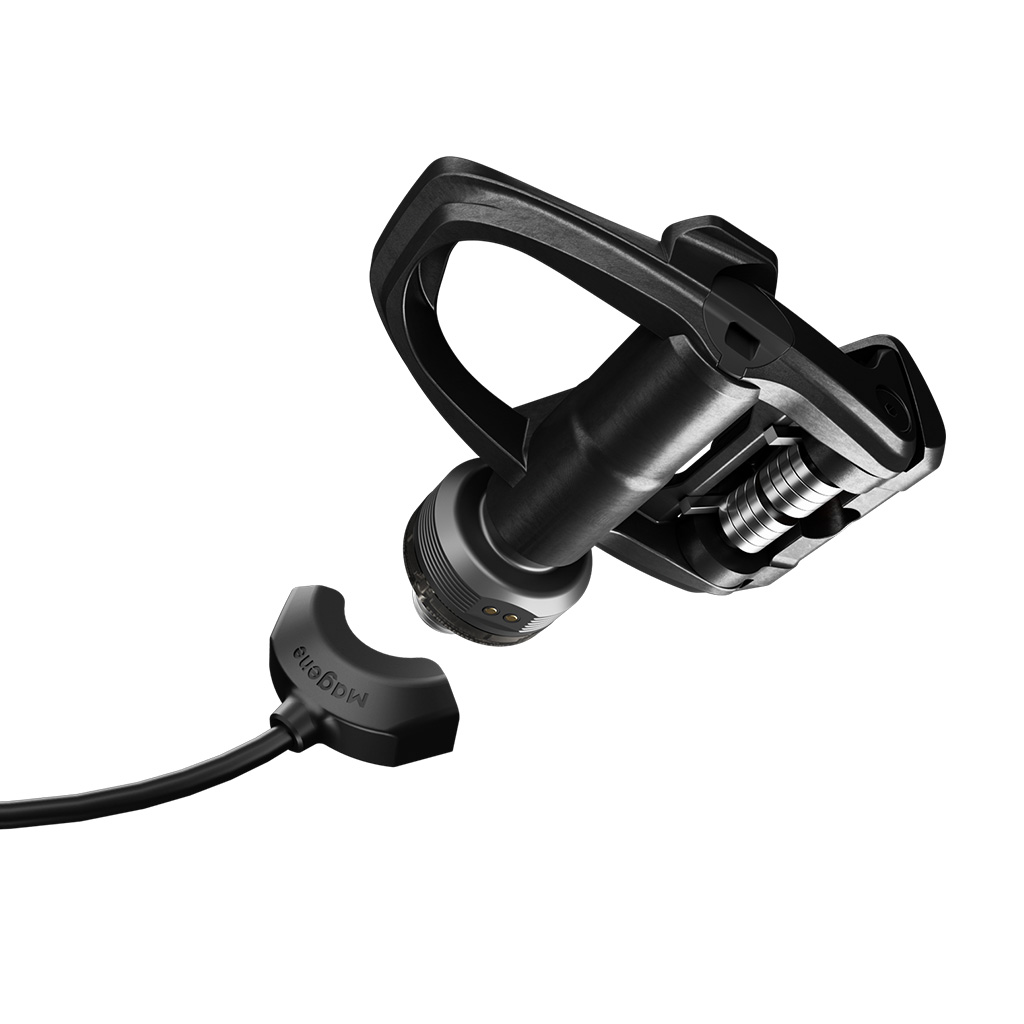

P715 pedal-based power meter can support you for up to 120 hours of cycling, yet with an easy way to charge - magnetic charging. Compared with clip charging and replacing button cell, we apply a rechargeable lithium battery so that you can enjoy cycling in an effortless and eco-friendly way while protecting charger. Fully charged in 3 hours, and then you can get ready for long rides and training sessions up to 120 hours.

7 Advanced Training Functions, Comprehensive Cycling Status Analysis

The secret to elevate cycling ability is not only power. Besides for regular power and cadence data, P715 provides more advanced cycling data to help you understand your pedal status and riding ability.

Power phase：Learn your power generation zone, force angle, peak region of work, so as to optimize your watts zone and distribute power reasonably.

Riding position: Learn power output at different postures. Therefore you can adopt different postures and improve pedaling efficiency during different situations.

Left and right balance: Know the difference between your left leg and right leg output, so as to enhance training of the weaker leg.

Pedaling smoothness: Analyze how even your watts output is throughout pedaling cycles. Then you can adjust your watts distribution for different situations.

Torque effectiveness: Learn your pedaling pattern and how much power is effective in pushing you forward, helping you improve pedaling effectiveness.

*The power phase and riding position functions are only available to bike computers supporting above functions, such as GARMIN. Magene will update bike computer soon to support these functions.

157g Each Pedal Weight, Light, yet Strong and Safe

Pedals are made from composite carbon fiber and the spindle utilizes precipitation hardening stainless steel. Therefore, we are able to reduce the pedal weight to the extreme while keeping it stiff. After 1 million pedals, product still works normally. Testing data comes from Magene lab.

1 min Installation And Go, Training Starts Anywhere Anytime

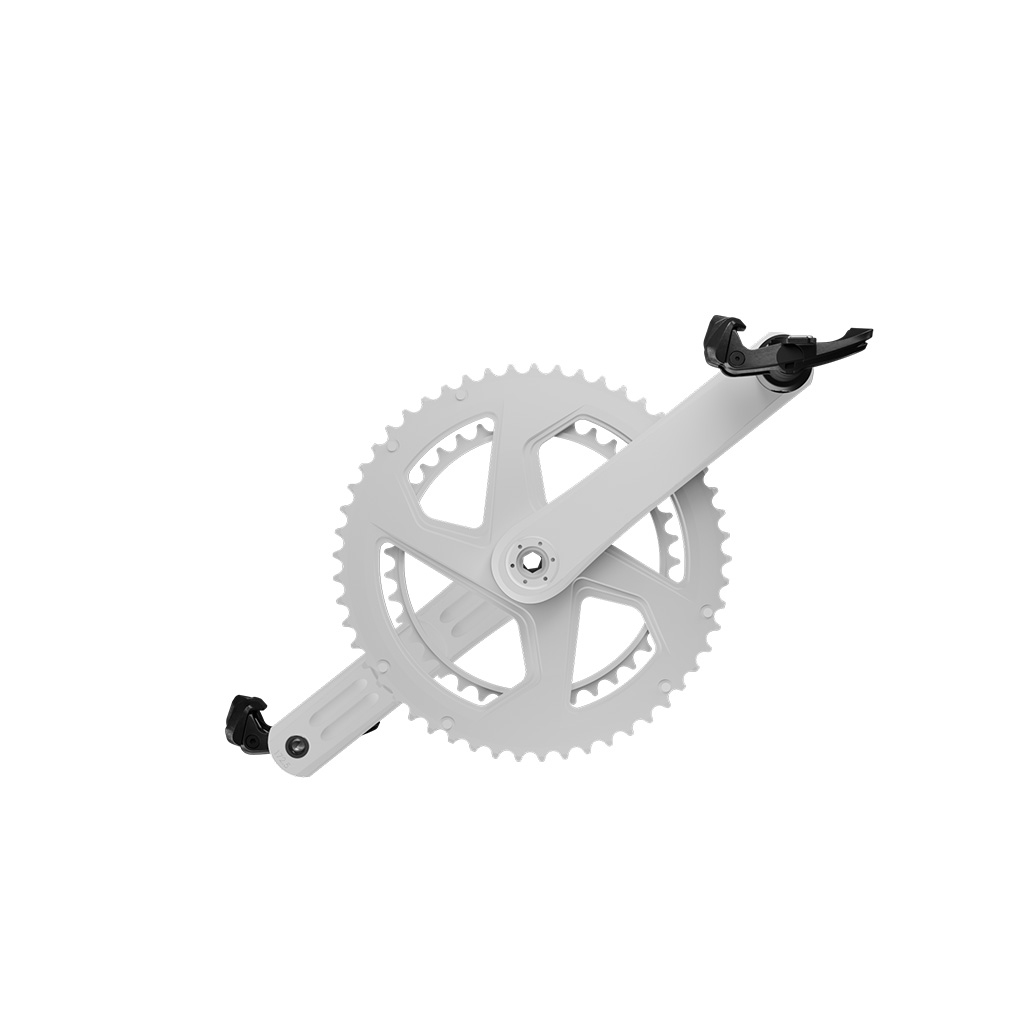

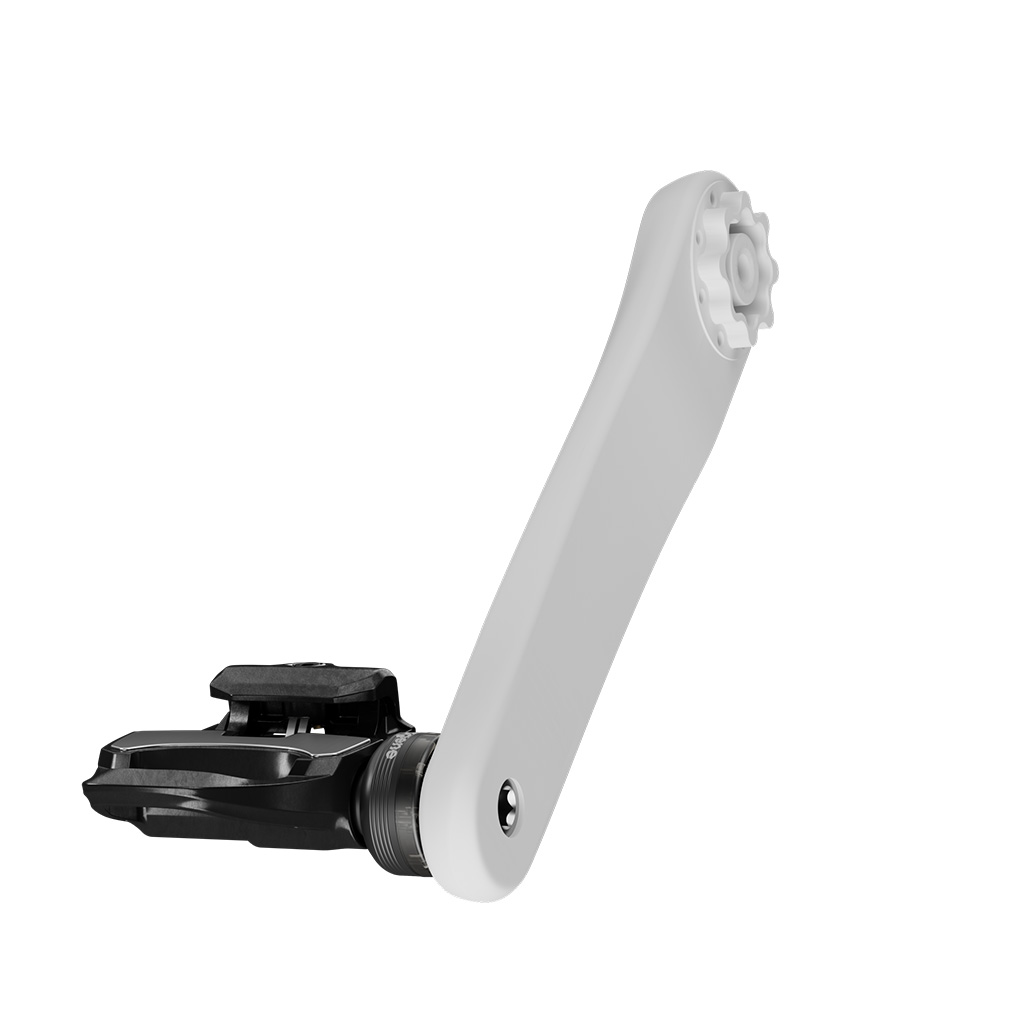

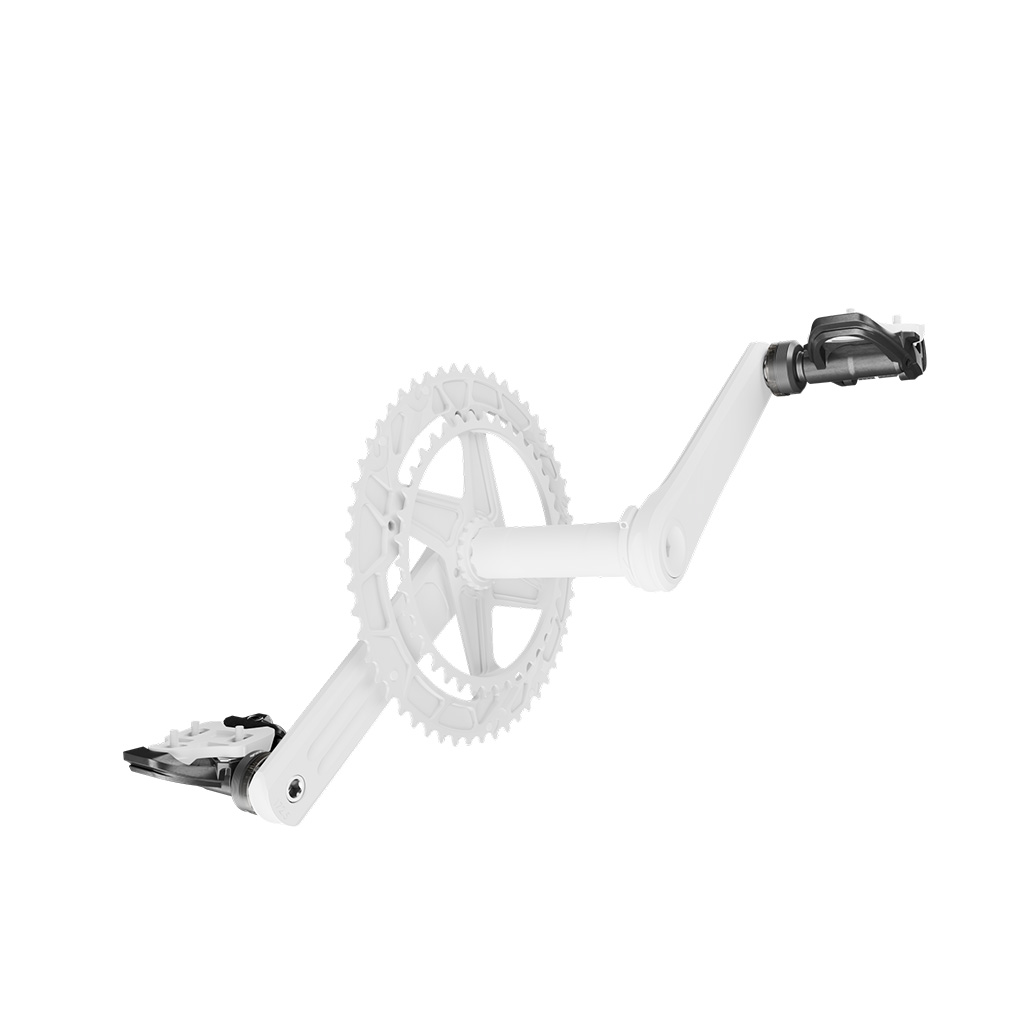

Installing P715 pedal-based power meter is like any standard road bike pedal you are using. Insert and fix it with a wrench, then you are ready to go!

Support Bluetooth & ANT+ Dual Protocols

Support Bluetooth and ANT+ dual protocol. You can connect to one Bluetooth device and unlimited ANT+ devices at once.

Other Features:

• IPX7 waterproof: Feel free to ride on rainy days.
• Multiple calibration: Support automatic calibration and manual calibration on Magene Utility APP or bike computer that supports calibration.
• Customize crank length: Before riding, you could adjust the crank length on Magene Utility APP or bike computer that supports crank length setting to get more accurate power data.
