Absolute Black Oval MTB Chainring - 1X Shimano 96 BCD - XT M8000-Black

0 Reviews
Item Code: OV96XT8000/3XBK

Rs.7,995

List Price Rs.7,995

Our Premium 1X Oval 96BCD narrow wide chainring is designed for Shimano XT M8000, SLX M7000 and MT700 1x or 2x cranks Only. These chainrings fit Boost and non-boost bikes as correct offset is realized by the crank spider itself, not chainring.

It is ideal for 1x 10/11/12 and Singlespeeds. Oval (elliptical) chainring does not compromise the work of clutch mechanism in rear derailleur. It also does not require chain tensioner when using in singlespeed application. Riding out of saddle on the uphill will become more pleasant.

Advantages of our special oval narrow wide chainrings for Shimano XT M8000, SLX :

  • We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.
  • Finest design to provide excellent weight to strength ratio
  • One of a kind special oval shape (Patent Pending)
  • Greatly improves traction and climbing abilities
  • Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
  • Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
  • Superb quality and great look.
  • You will ride faster using ovals. If you keep using round ring then others will get quicker
  • You will not "feel" the oval shape at all
  • Reduces stress on knees

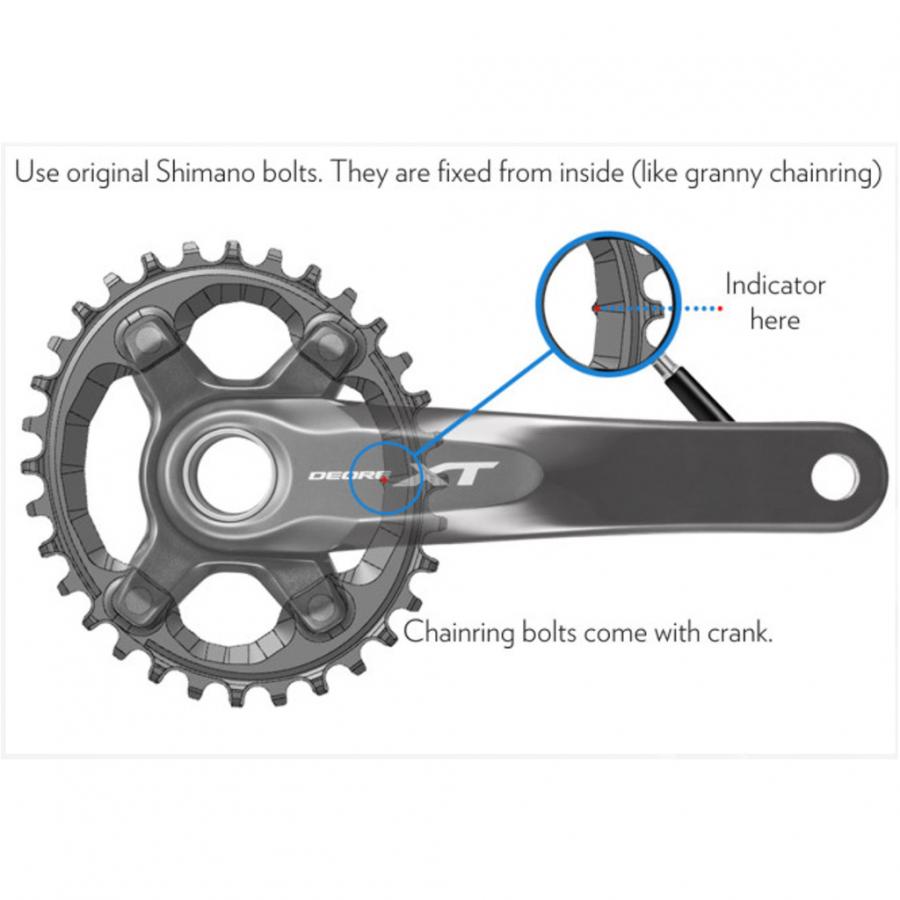

How to mount Absolute Black Oval narrow wide chainring:

There is a small mark (triangle shaped) on the inner circumference of the chainring. This mark must sit behind the crank arm. Mounting procedure is identical for SLX and XT cranks. Use the stock 1X Shimano M8 chainring bolts that come with crank and Torque them to about 7Nm.

Important - if you are converting from 2X chainring setup to 1X and wish to mount 30T absoluteBLACK ring you need to purchase 1X bolts from Shimano for this crank, because 2X bolts are too short. Other chainring sizes can use Shimano 2X bolts.

  • Size : 30T (44g), 32T (50g), 34T (60g), 36T (69g)
  • Bolts : Included
  • Colour Options : Black, Racing Red, Gold
  • Compatibility : Fits Shimano XT M8000, SLX M7000 and MT700 cranksets 1X and 2X only. 9, 10, 11 and 12spd Eagle compatible. Boost and non-boost.
  • Material : CNC machined 7075 Txxx Aluminum. Long-lasting construction. Type II anodizing
  • Chainline : Perfect 49mm
  • Mounting Holes : 4 x 96mm BCD Asymmetrical design. Use stock bolts.
  • Ovality : Optimized to each size separately. Range: 10.2-14.4% and Timing of 110.5-116.3° after TDC (top dead center) Patent Pending
  • Chain Options : 10, 11 or 12spd chain for geared bike or 6-8 spd one for SS (1/8" also fits).
  • Chainguide needed : No. But if you want one then chain guide should have 2 teeth more capacity than nominal oval ring size.

All 4 sizes have built-in standoffs to provide the ideal 1X chainline.

Important - When mounting 30T chainring make sure your bolts have min 11mm long thread (original Shimano 1x bolts) .Other chainring sizes can be mounted with 8mm long bolt thread.

If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):

  • 30T: 134mm ; 32T: 143mm ; 34T: 151mm

WORLD'S FINEST OVAL CHAINRINGS

British design at its best. absoluteBLACK is the largest manufacturer of oval chainrings in the World. We are devoted to extraordinary design, European manufacturing and production of parts that perform great & are made to last.

We believe anything out there can be made better, including chainrings. We made it our goal to improve riders pedaling efficiency by changing the way how torque from the crank is delivered to rear wheel. This is how absoluteBLACK oval chainrings found its way to general market and gained Worldwide recognition.

The company’s foundation comes from our passion to cycling. absoluteBLACK is still a family-owned brand.

Our design office is based in London, England. All metal components are manufactured and dispatched from Poland (EU) using German aluminium, then skillfully anodized in the United Kingdom. Because of our attention to every detail, we’re proud to produce bicycle parts with an unbeatable combination of styling, performance, and precision.

World of Wheelz (WOW) is the official distributor for Absolute Black in India.

Sizing Information

  • 30T, 32T, 34T, 36T
  • Country of Origin - Poland
