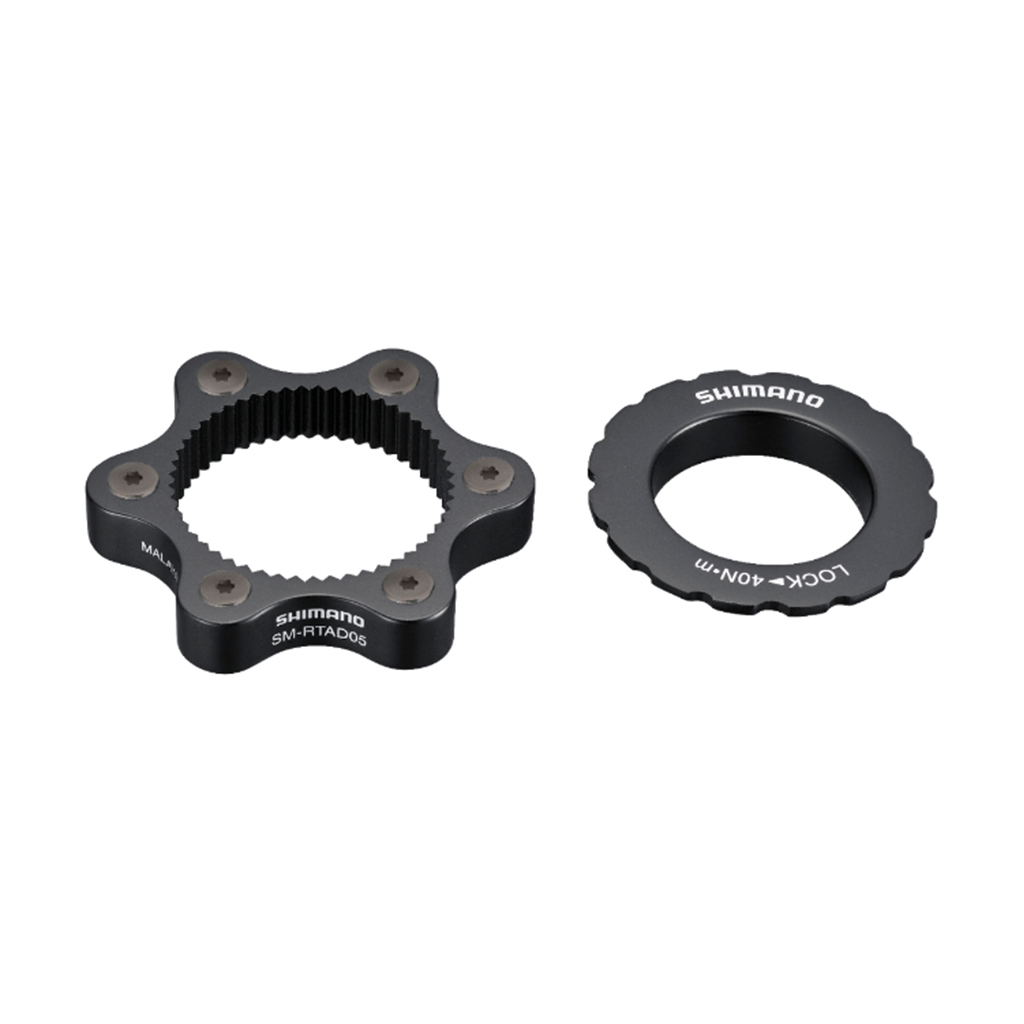

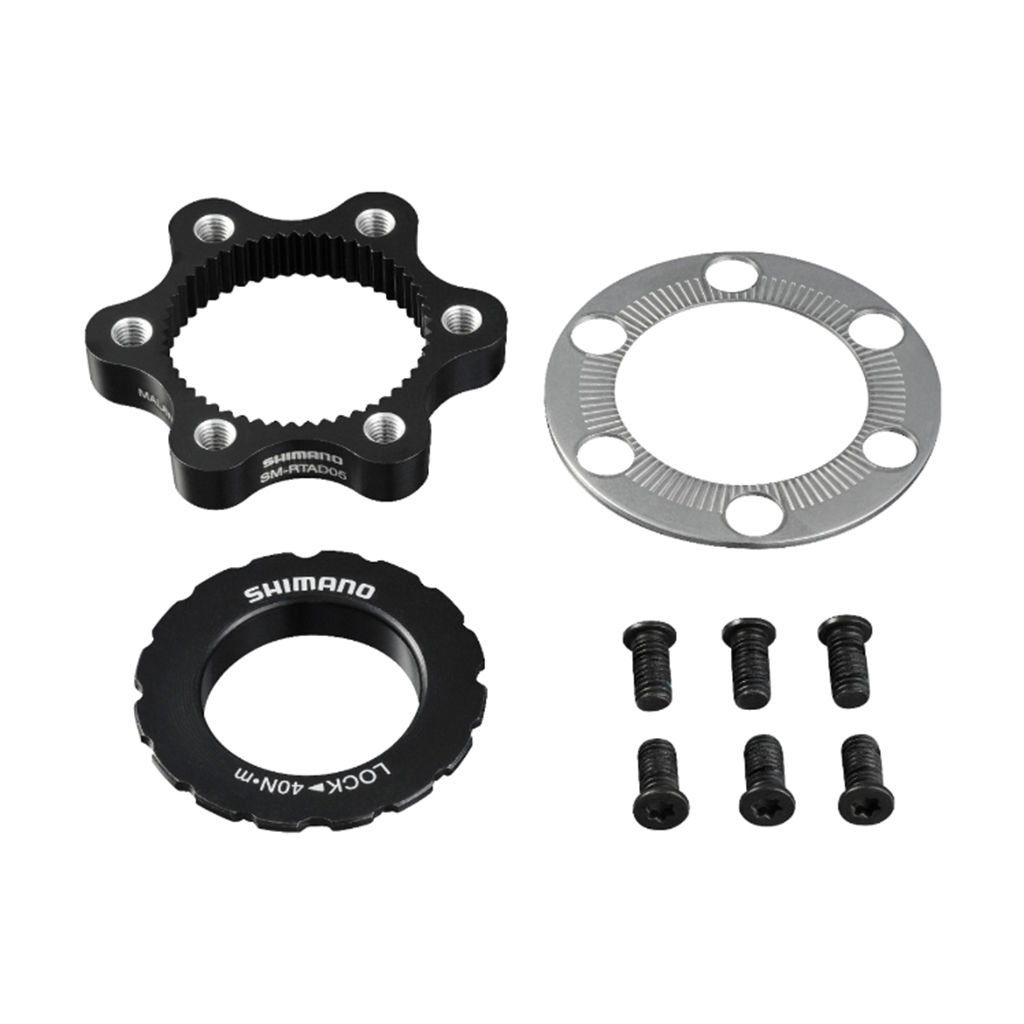

SHIMANO DEORE - Disc brake rotor adapter - 6-bolt rotor to CENTER LOCK hub

SHIMANO's SM-RTAD05 disc brake rotor adaptor is used for installing a 6-bolt disc brake rotor to CENTER LOCK hub. The adapter features a reliable anti-loosen plate for secure braking in all riding conditions.

Features:

• Lightweight and sleek, mud-shedding design
• New tightening plate
• Reliable and easy anti-loosen plate
• Compatible for metal pad
• compatible with all Shimano 6-bolt brake rotors, except XT SM-RT86 and SM-RT76 (as they have an aluminium spider)
• compatible with all axle standards (Front 9, 15, 20 mm, Rear 10, 12 mm, quick-release or thru-axle)
• External toothing
• 160 mm, 180 mm, 203 mm

Product Features:

• Model No: SM-RTAD05
• SERIES: DEORE M610 Series
• Color: Black
• Remarks: Use this disc brake rotor adapter to attach the 6-bolt mount type disc brake rotor to CENTER LOCK mount type hub. Cannot be used with the 6-bolt disc brake rotor that is installed with an aluminum adapter (SM-RT86/RT76).
• Lock ring_Type: External serration
• Disc brake rotor mount method: Hexalobular bolts
• Compatibility (Disc brake rotor)_SM-RT66: ✔
• Compatibility (Disc brake rotor)_SM-RT56: ✔
• Compatibility (Axle)_Front 20 mm Thru: ✔
• Compatibility (Axle)_Front 15 mm E-THRU: ✔
• Compatibility (Axle)_Front 9 mm Quick release: ✔
• Compatibility (Axle)_Rear 12 mm E-THRU: ✔
• Compatibility (Axle)_Rear 10 mm Thru: ✔
• Compatibility (Axle)_Rear 10 mm Quick release: ✔
• Compatibility (Disc brake rotor)_SM-RT26: ✔
