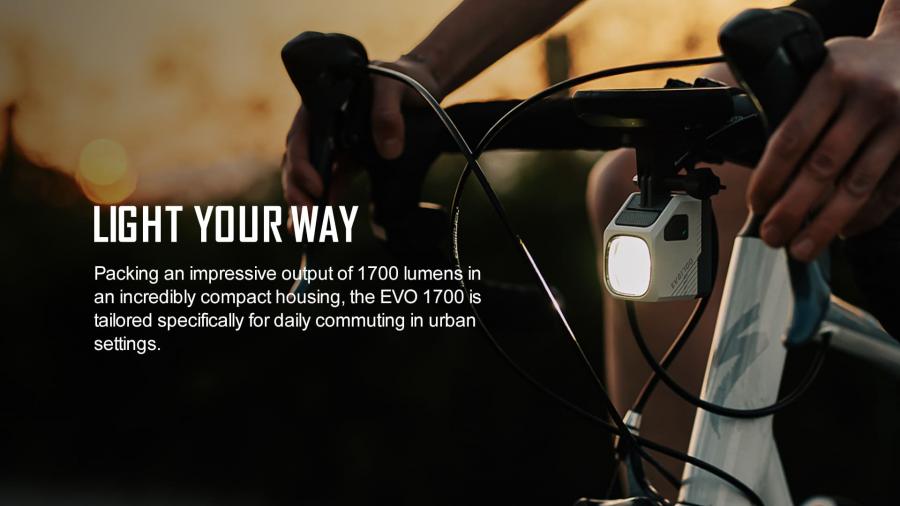

Packing an impressive output of 1700 lumens in an incredibly compact housing, the EVO 1700 is Magicshine's first bike light designed to be mounted underneath and a great light for you and other road participants.

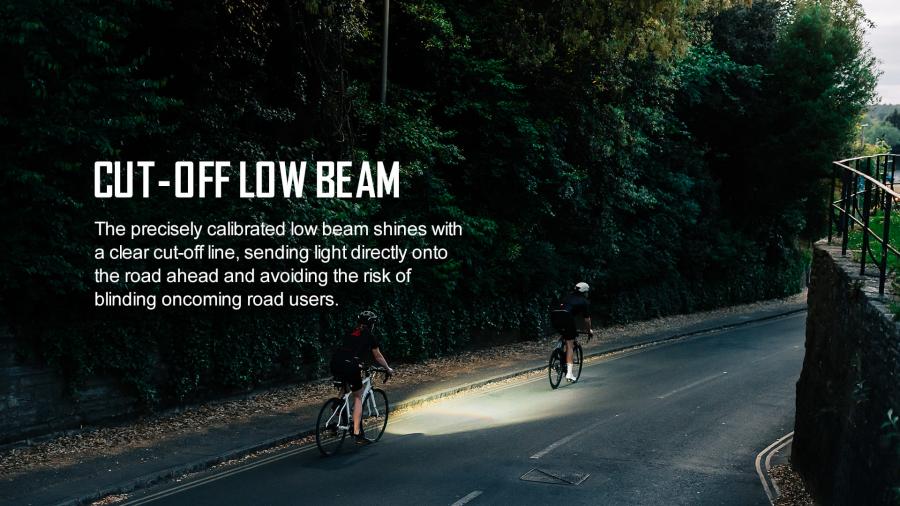

Similar to car headlights, it features a precisely calibrated low beam with a clear cut-off line, directing light directly onto the road ahead. This prevents the light from spreading too far outwards and upwards, avoiding the risk of blinding oncoming road users. Additionally, the EVO 1700 includes a high beam for darker paths, trails, or fast rides.

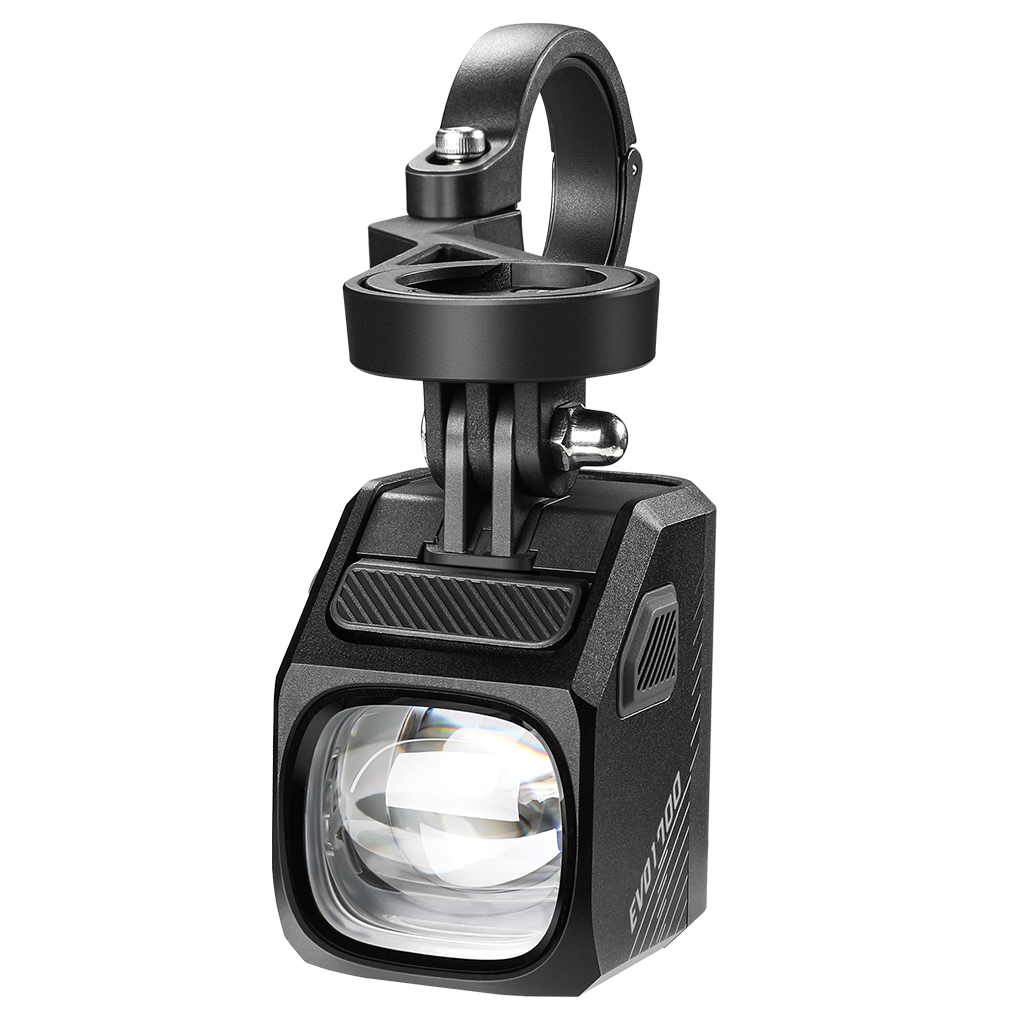

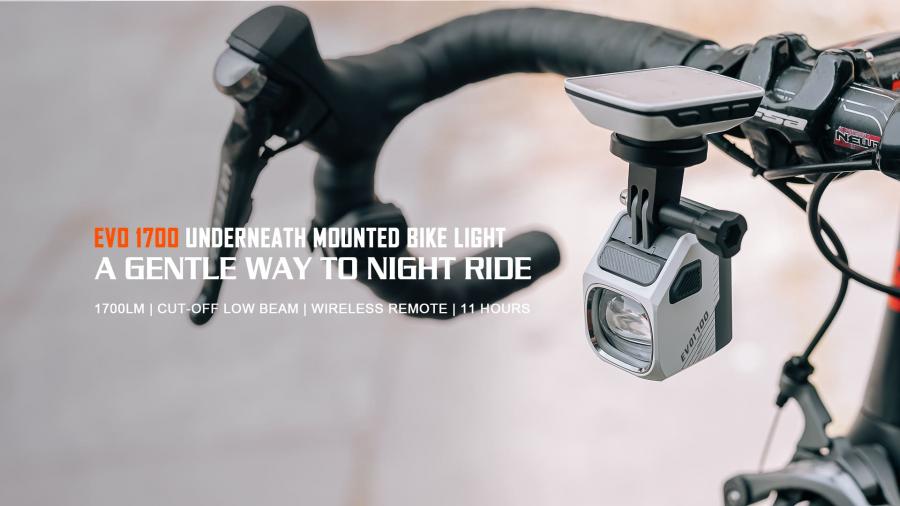

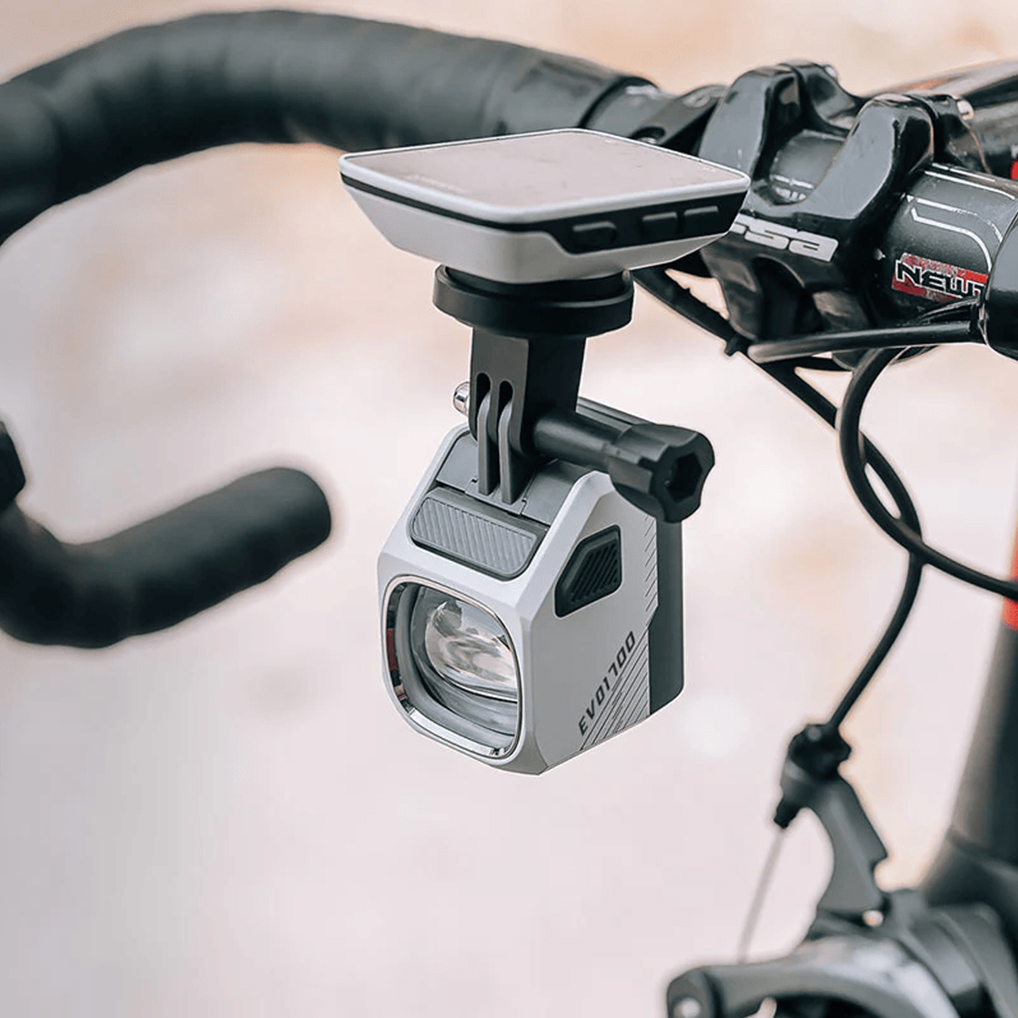

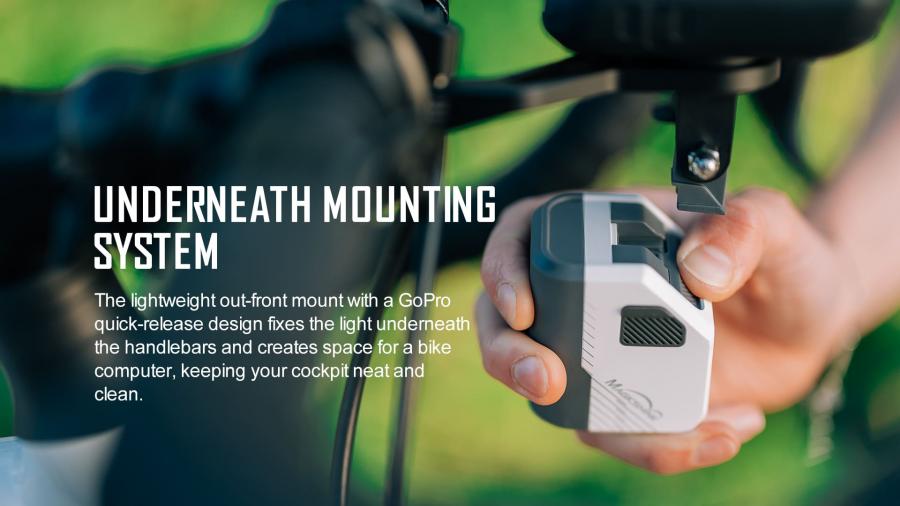

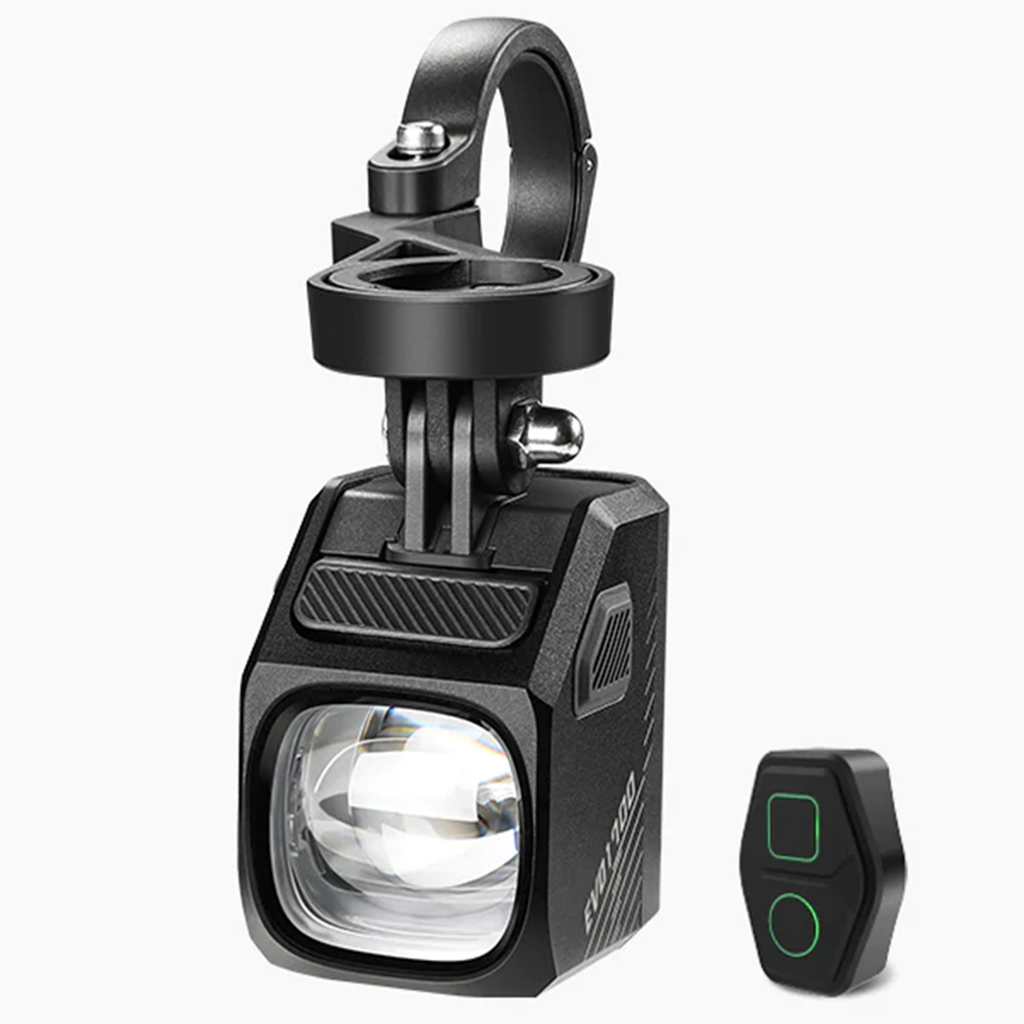

What sets the EVO 1700 apart is its innovative mounting system, designed to mount the light underneath the handlebar and create space for a bike computer. This makes your cockpit neat and clean while keeping the light in the best orientation for the nice beam to do its thing. The lightweight out-front mount with a GoPro quick-release design makes it possible to install and remove the light in seconds. Also, by adjusting the light head up and down, you can get a wide-range beam or oriented lighting for the best possible security in any environment.

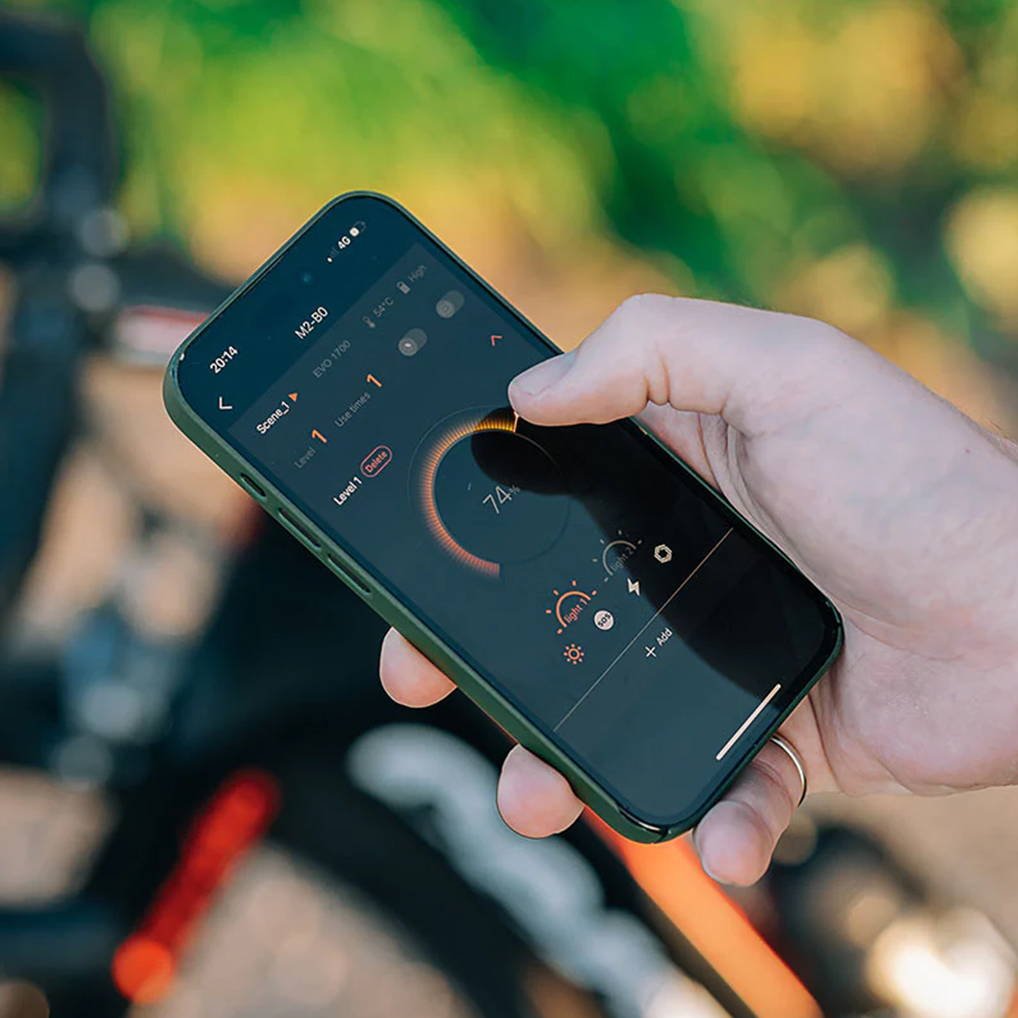

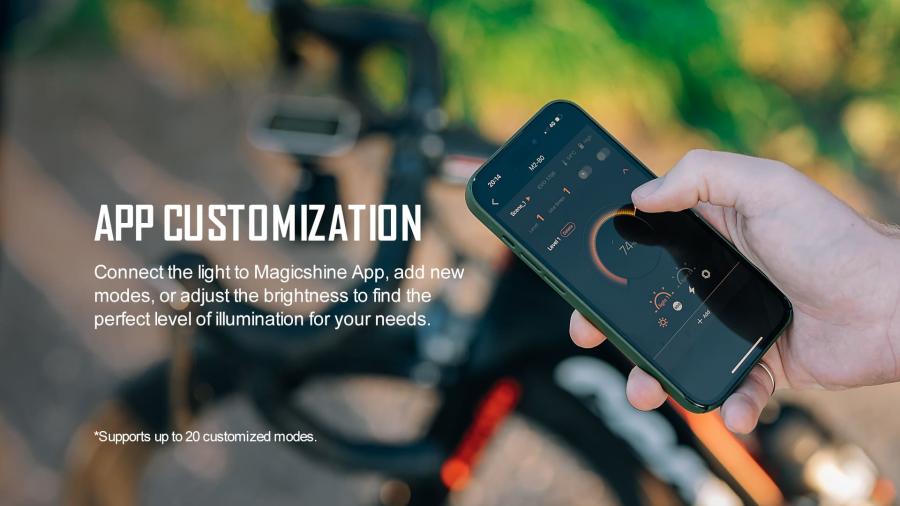

By connecting to the Magicshine App, you can customize your lighting preferences by adding new modes or adjusting brightness levels to suit your specific needs. In addition, the wireless remote provides instant access to on/off, mode switching, and even the maximum output without taking your hands off the handlebars, keeping your focus solely on the road ahead.

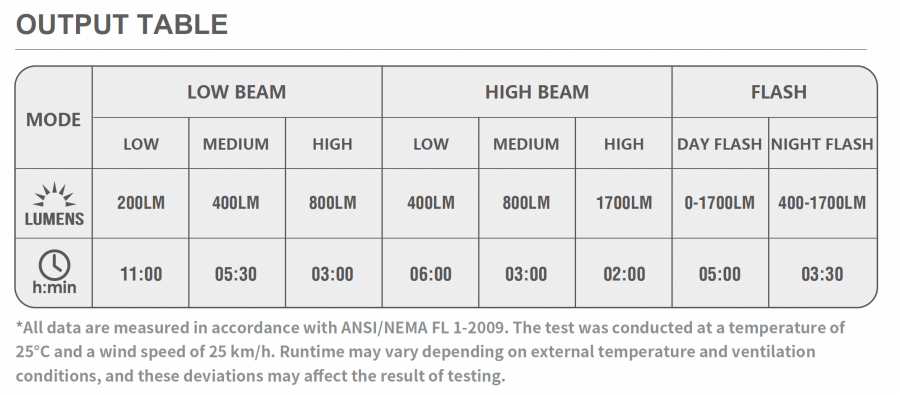

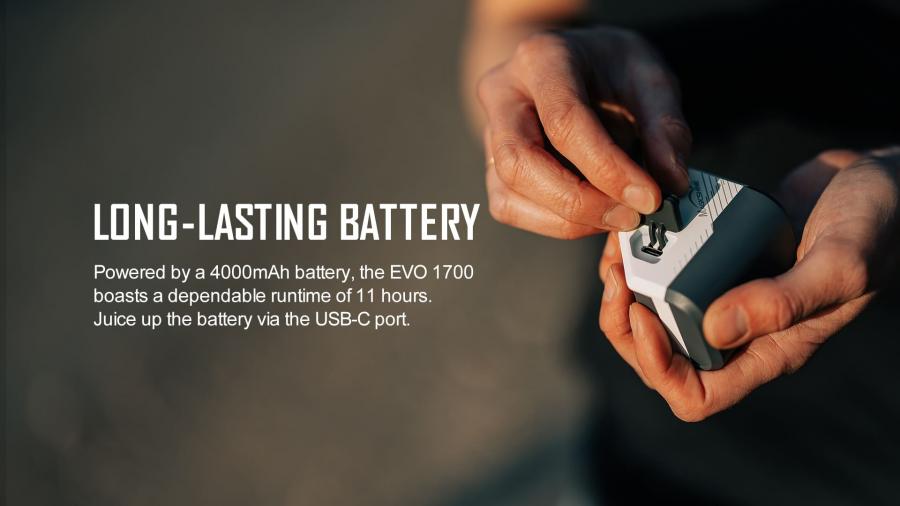

The EVO 1700 light is powered by a 4000mAh battery, which can be easily recharged through USB-C connectivity. This battery provides a reliable runtime of 11 hours. This design aids in heat dissipation and provides resistance against various weather conditions. With an IPX6 waterproof rating, the light can withstand adverse elements and continue to illuminate your path even during heavy rain.

Features:

• High-power LED provides a maximum output of 1700 lumens. • Unique combination of up-close low beam and far-reaching high beam.
• Cut-off low beam, glare-free for oncoming road users
• Lightweight out-front mount installs the light underneath most handlebars
• Customize lighting settings for different cycling scenarios through Magicshine App
• Wireless remote control, straight forward to activate maximum output

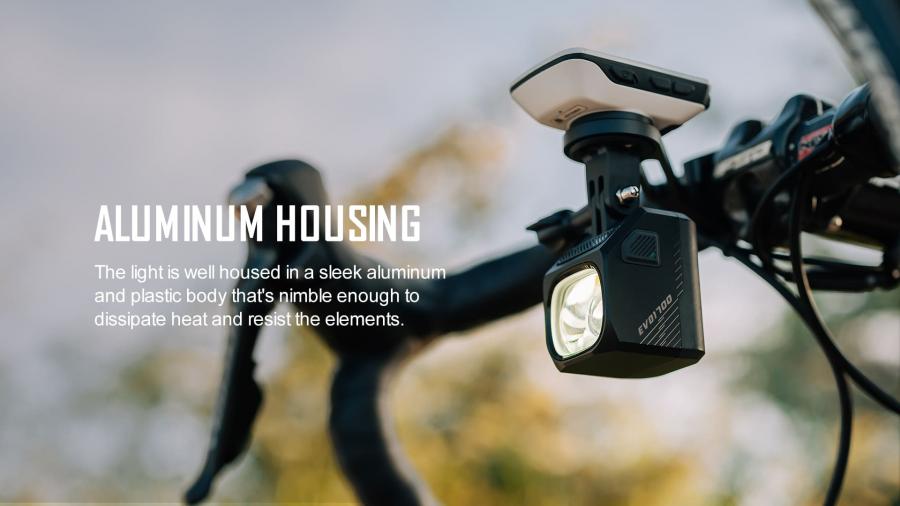

• Robust aluminum housing for efficient heat management and optimum performance
• Powered by a 4000mAh battery, ensuring long-lasting runtime
• USB-C rechargeable
• Lock function to avoid mis-operation
• Memory function saves the last selected mode

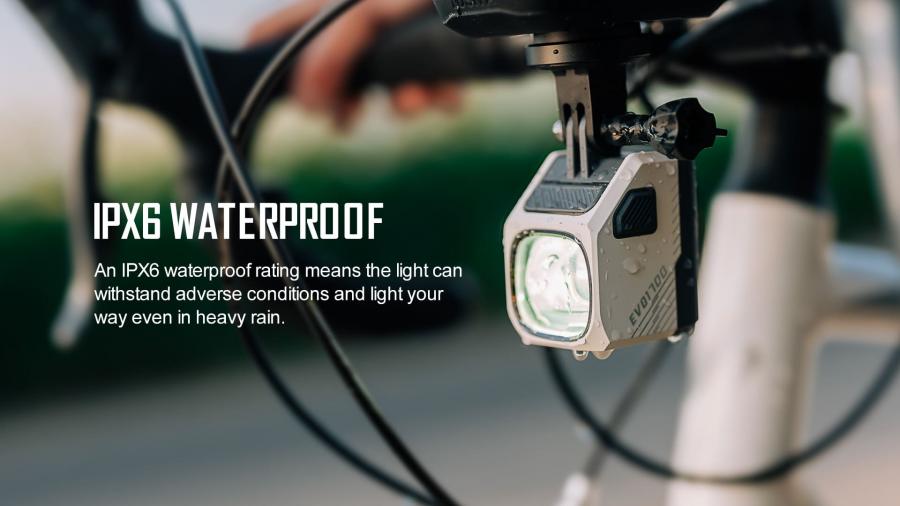

• IPX6 waterproof rating, able to withstand adverse weather

Operating Instructions:

Switch - A switch on the light unit and a wireless remote control all modes and brightness.

On/Off - Press and hold the button to turn the light on/off. The default output is the last mode when turned off.

Adjust Brightness - When the light is on, click the button to change brightness level. The output brightness will cycle through Low→Medium→ High→Low...

Change Mode - Double click the button to change between low beam and high beam. (Note: The Day flash and Night flash can only be accessed through the remote control)

Lock/Unlock - When the light is off, press and hold the button for 3 seconds to enter lockout mode. To unlock the light, you can press and hold the button again for 3 seconds or charge the light.

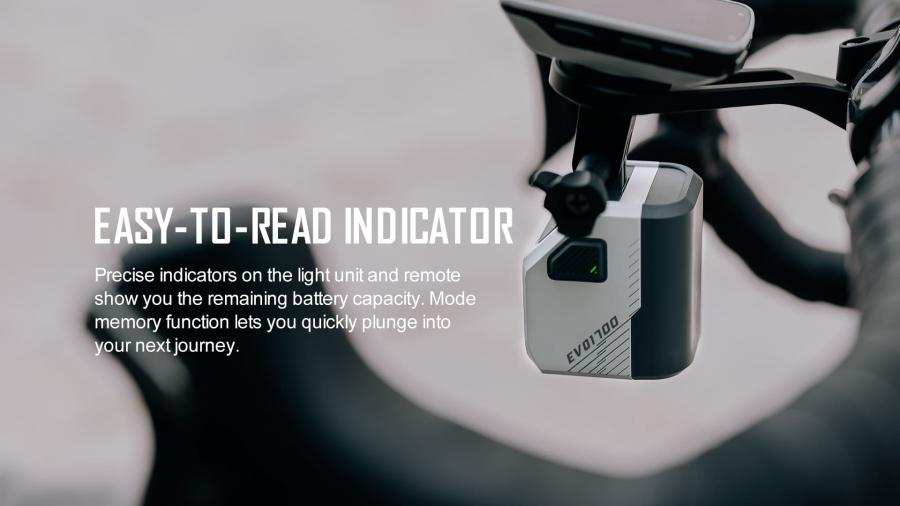

Battery Indicator - When the light is off, click the power button to display the remaining battery level for 3 seconds.
Green: 100%-21%, Red: 20%-11%, Flashing Red: 10%-1%

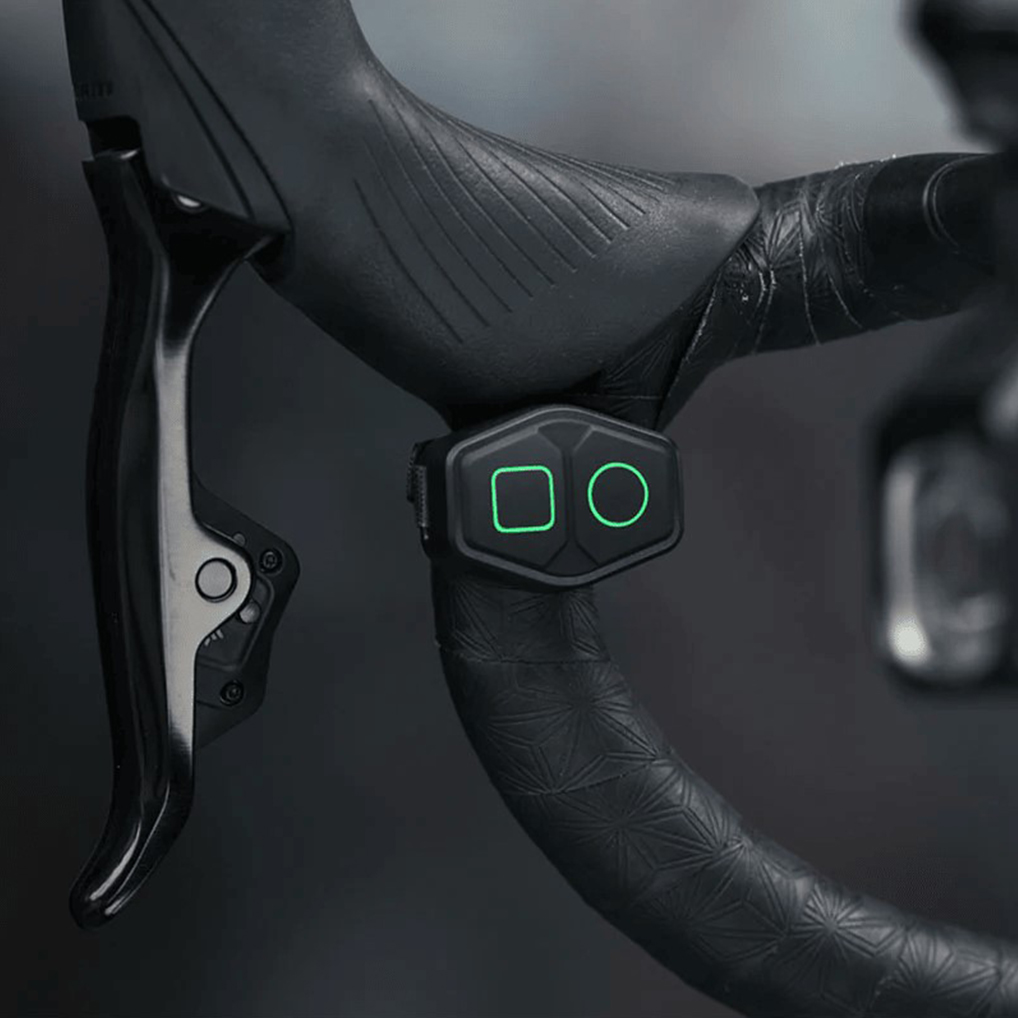

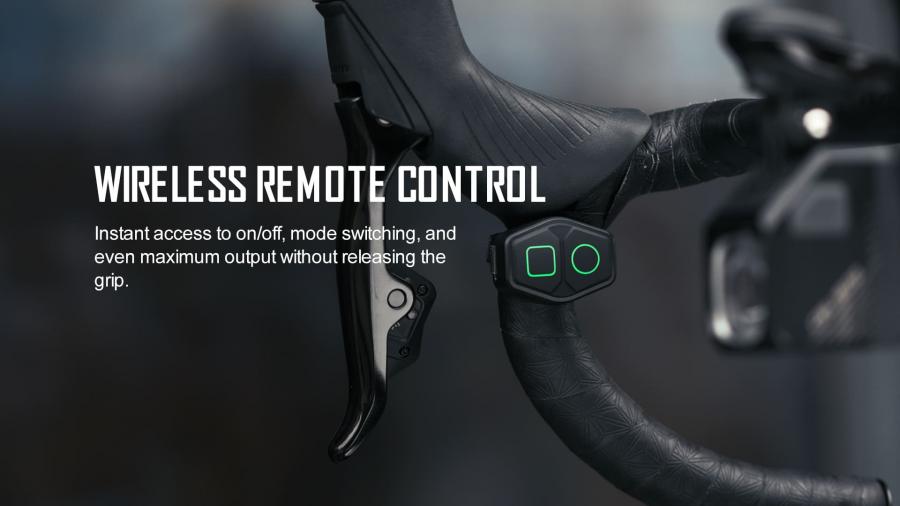

Wireless Remote Control:

• Pairing: Turn on the light, press and hold the "○""□" buttons on the remote for about 10 seconds until the indicator alternately flashes blue to enter pairing mode. Then, put the remote close to the light button until the indicators on the remote and light unit are constantly blue for 2 seconds, confirming a successful pairing.
• Before first use, please open the remote's battery compartment, remove the insulating spacer, reinsert the battery, then cover the battery compartment, and the indicator on the remote will flash blue.
• On/Off: Press and hold the "○"/"□" button for 1 second
• Adjust brightness: Click the "○" button
• Change mode: Double click the "○" button
• Flash mode: Double click the "□" button
• Full output mode (1700LM): Click the "□" button to go into full output mode and click the "○"/"□" button to return to the previous mode
• The remote control will enter sleep mode if the light is turned off for more than 48 hours without any operation. Click the light's button to activate it or long-press the light's button to turn it on, and the remote control can work normally

Connect with the App:

• iOS users search for "Magicshine" in the "APP Store," and Android users search for "Magicshine" in "Google Play" to download the App.
• Turn on the Bluetooth of your smartphone and open the APP, click "Add New Devices" and find "M2-B0". Click "Add", then click "Connect the device".

App Settings:

• Click "Add" at the bottom to enter the "Device Settings" interface
• Click "Mode 1" or "Mode 2", you can customize "Always On", "SOS", "Blinking", and "Warning" as well as their corresponding brightness
• Up to 20 customized modes are supported.
• When you delete all customized modes in the App, the light will return to the factory default mode
