Magene TEO-P515 Power Meter Carbon Set - Never compromise to ultimate performance.

Magene TEO series adopt cutting-edge design, premium materials and exquisite techniques, providing extraordinary weight and mechanical performance.

Engineered for racers, the 425g ultra-lightweight carbon crank and ​​7075 aluminum spider deliver ±1% power accuracy and ultra-high stiffness. With 330-hour battery life, 4 key metrics, and Bluetooth/ANT+ connectivity, it’s built to dominate.

IPX7 waterproof and 29mm spindle ensure durability, while the ​​110BCD-compatible design offers seamless chainring integration.

Features:

• Carbon fiber made crank achieves balance between light weight and high stiffness.
• DUB spindle ensures better overall performance
• 110BCD, 4-bolt for comprehensive compatibility
• ±1% power accuracy with high-precision strain gauges and acceleration sensors.
• 425g lightweight design, rapid response to every acceleration
• Track Your Progress – Power, cadence, left-right balance, and pedal smoothness for more efficient training.
• 330 Hours Battery Life – Efficient design keeps you riding without interruptions.
• Custom-build with QED split chainrings for crisp shifting and smooth flow.
• Seamless Connectivity – Sync with Garmin, STRAVA, Zwift, and more via ANT+ or Bluetooth.

Specifications:

• Model: TEO-P515 Power Meter Set
•  Ave.Weight: 425g±10g (170mm)
• Crank Length: 160mm, 165mm, 170mm, 172.5mm, 175mm
• Power Accuracy: ±1%
• Spindle: 29mm
• Bolt: 4 Bolts
• Chainline: 44.25mm
• Q-Factor: 148mm
• Power Range: 0~2500W
• Cadence Range: 20~240RPM
• Data Function: Power, Cadence, Left-Right Balance, Pedaling Smoothness
• Calibration: Automatic Calibration, Backpedal Calibration, Manual Calibration
• Wireless Protocol: ANT+, Bluetooth
• Waterproof Grade: IPX7
• Working Temperature: -20℃-50℃
• Battery Life: 330 Hours
• Charging: Magnetic Charging
• Warranty: 2 years

In the Box:

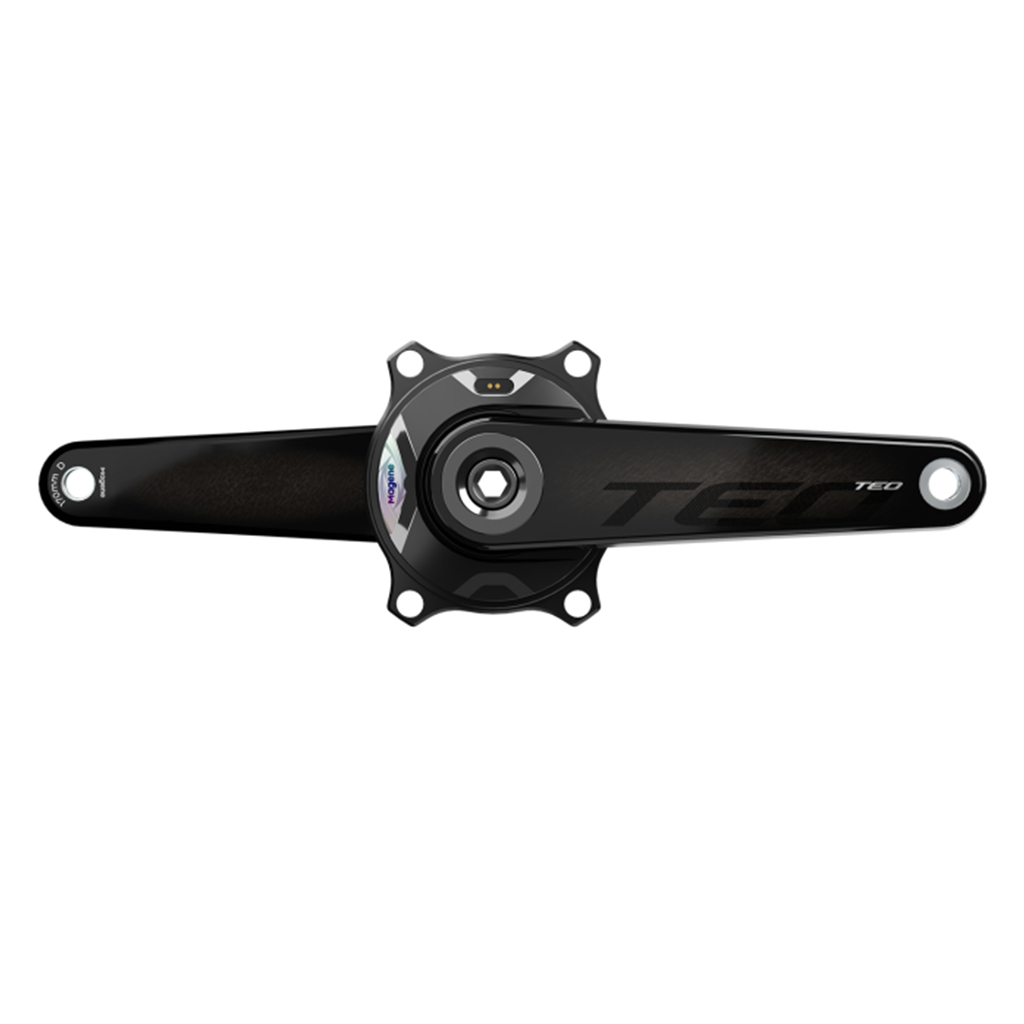

• P515 spider-based power meter
• TEO carbon cranks
• Lock Ring of Conversion Kit
• Magnetic Charging Cable
• Stickers x3
• Washer x5
• Quick Start Guide

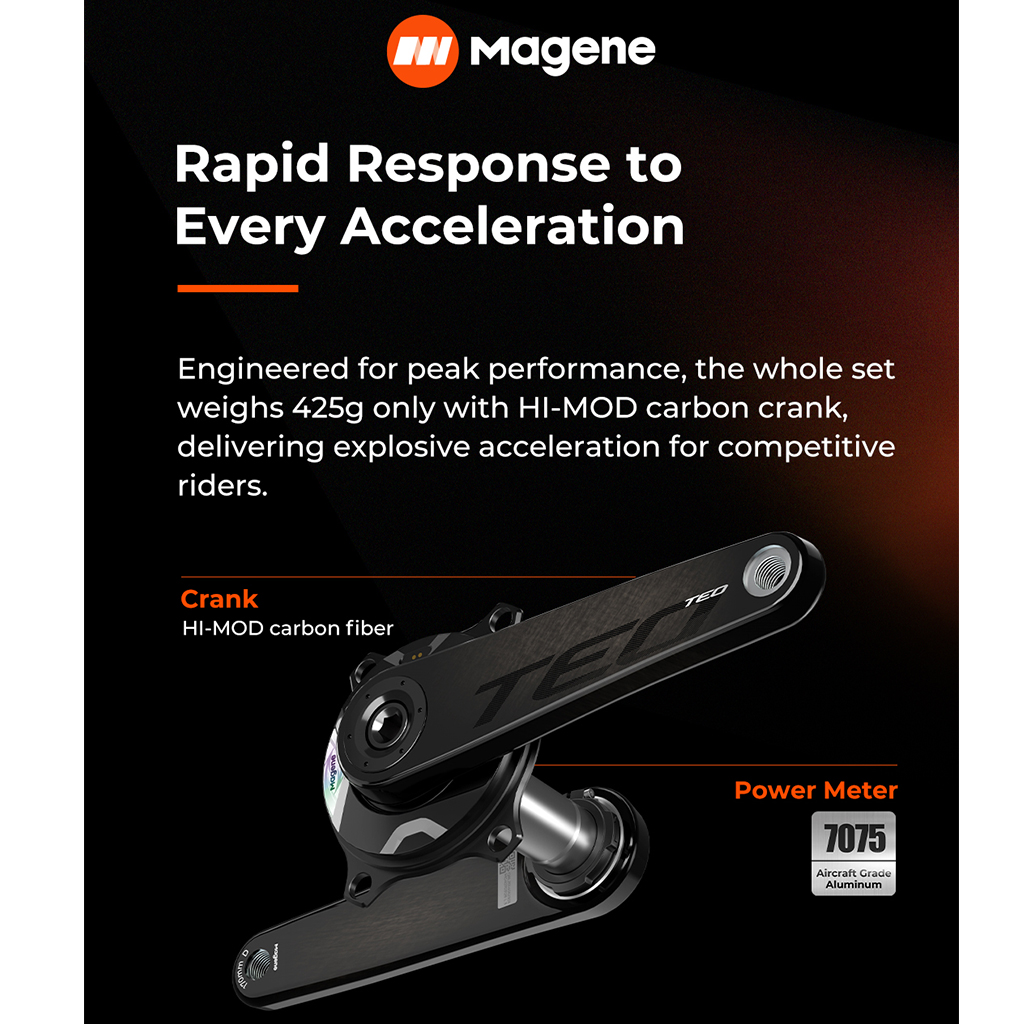

425g Lightweight Design, Rapid Response to Every Acceleration

Crafted from premium HI-MOD carbon fiber, the TEO carbon crank feature an innovative dual-channel high-pressure forming process, which minimizes weight to the greatest extent. With a sleek profile and an ultra-lightweight of just 325g, the crank deliver exceptional acceleration performance, helping you break away in competitive races.

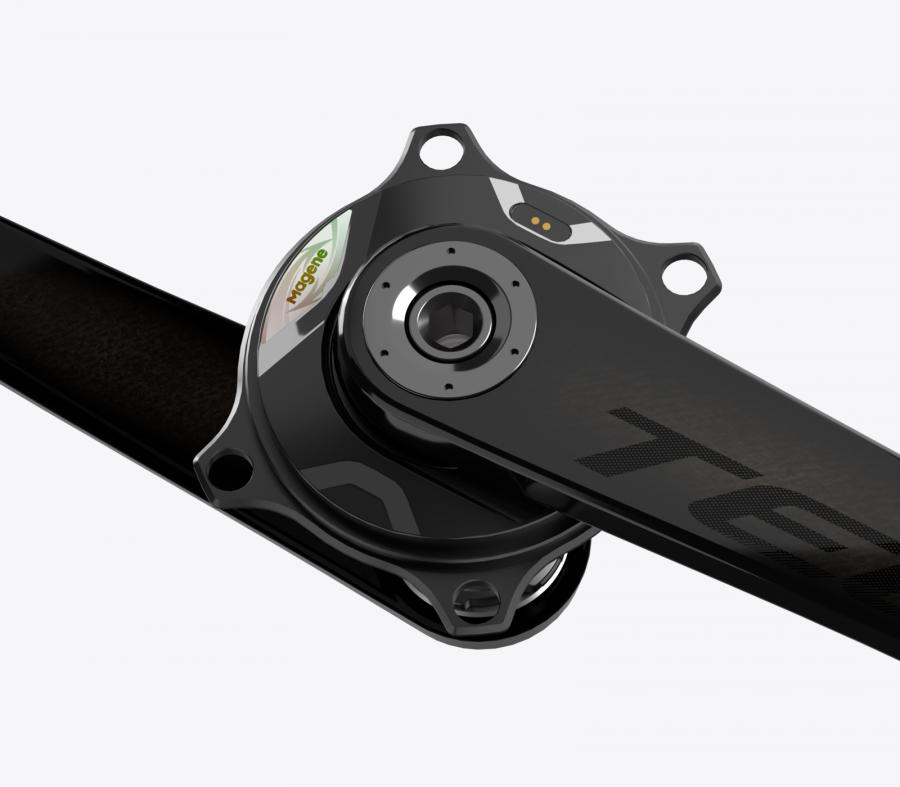

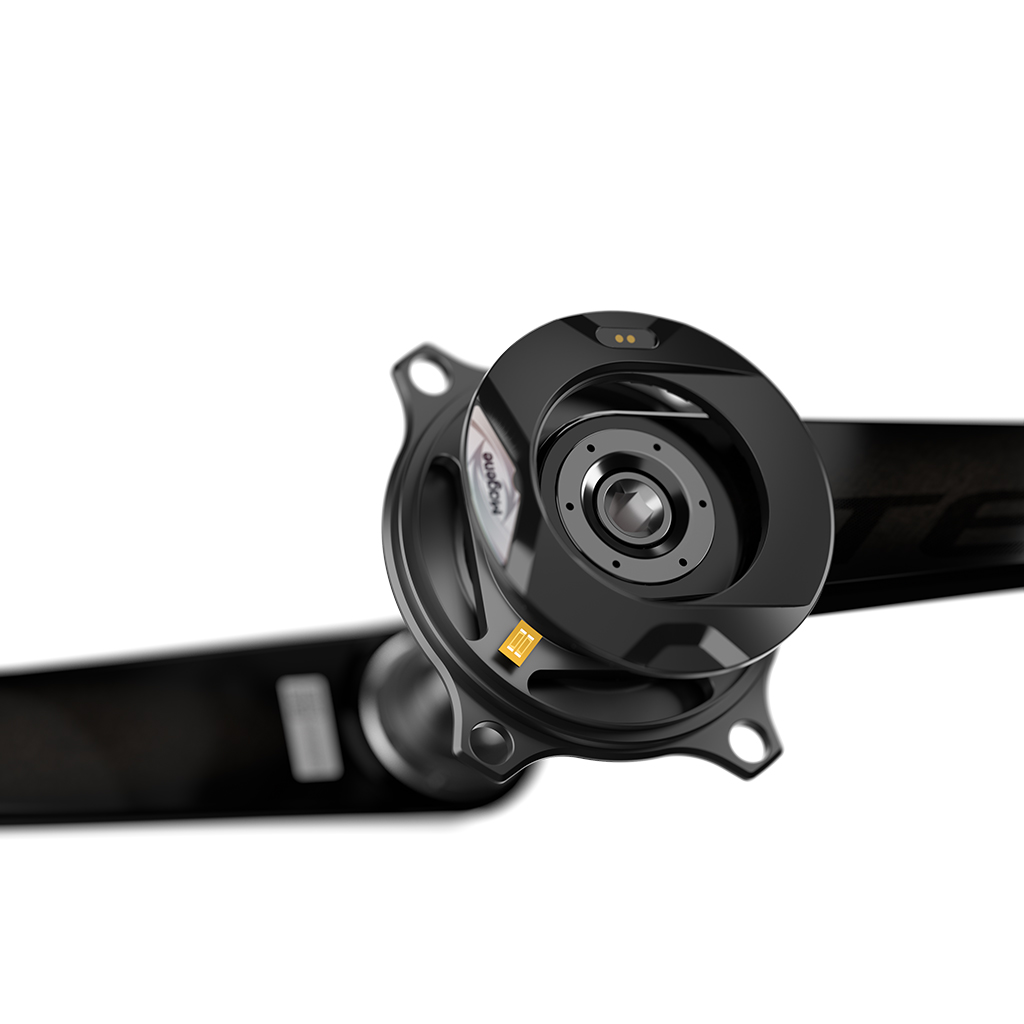

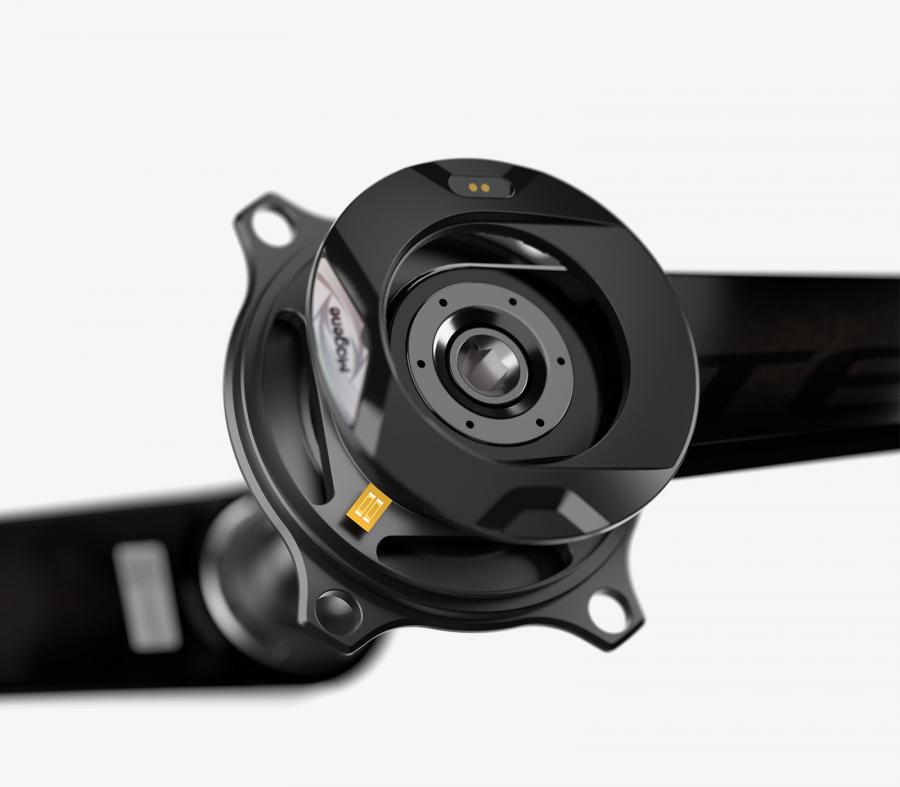

The P515 spider-based power meter is made of 7075 aircraft-grade aluminium. The selection of premium materials balances the weight while achieving great stiffness, making the power meter weighs 99g only.

*170mm crank weigh 325g and the data comes from Magene lab. 425g is the total weight after installation, including accessories.

±1% Power Accuracy, Capture Your Every Effort Accurately

P515 spider-based power meter employs high-precision strain gauges and acceleration sensors. Combined with built-in intelligent temperature compensation algorithms, it can track dynamic temperature conditions and compensate power data accordingly. It provides precise and reliable power data anytime and anywhere, even in changing environments.

Extensively tested in harsh environments with highly demanded standards, the product guarantees a ±1% power accuracy, never letting your effort in vain.

4 Essential Cycling Data, Evaluate Your Cycling Ability Comprehensively

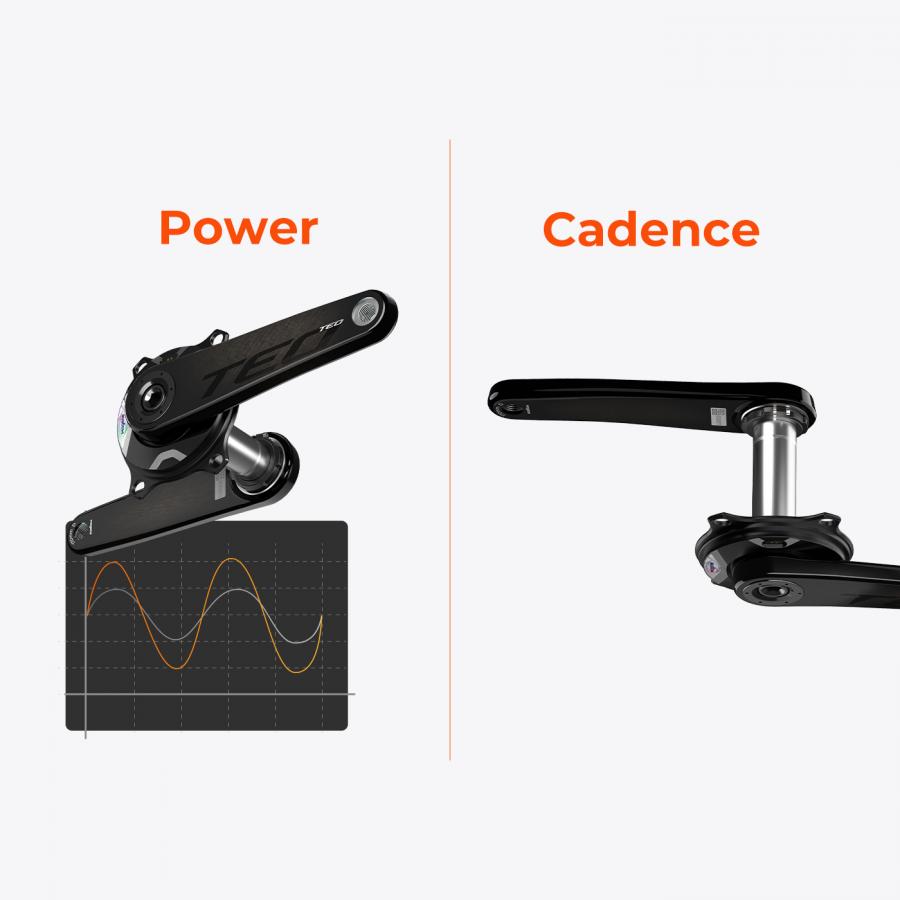

• Power: Sensitive and reliable power measurement, reaching ±1% accuracy.
• Cadence: Accurate and stable cadence data measurement always keeps your rhythm in control.

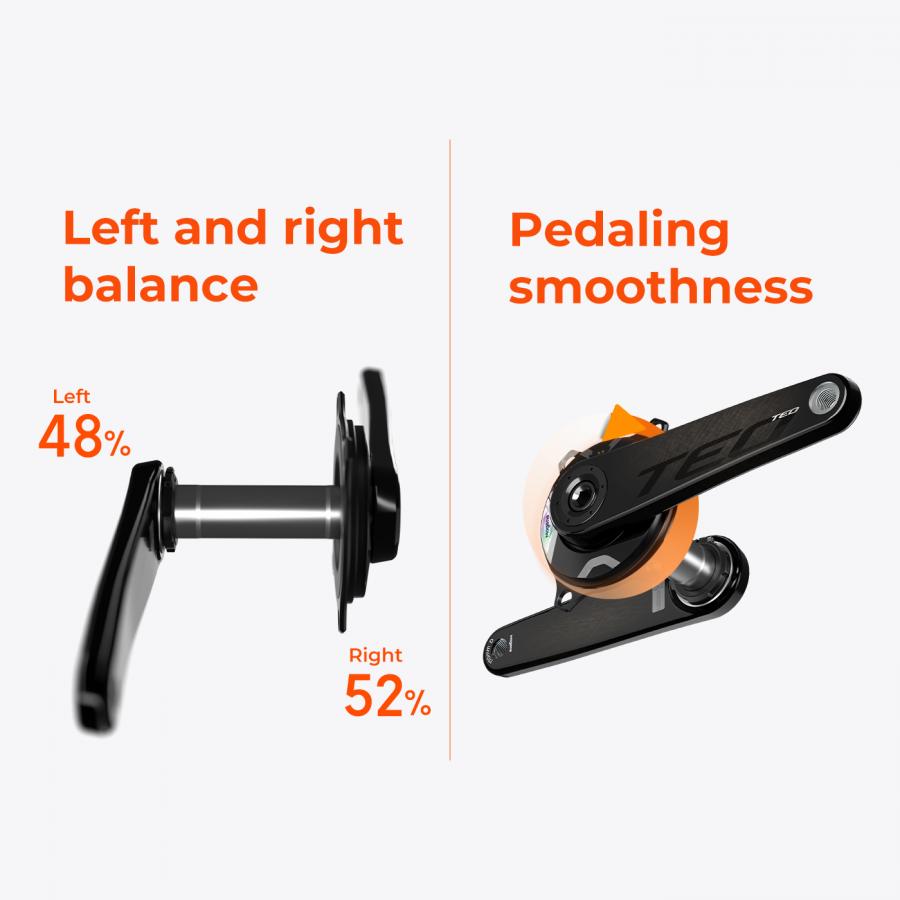

• Left and right balance: Know the difference between your left leg and right leg output, so as to enhance training of the weaker leg.
• Pedaling smoothness: Analyze power data balance of your pedaling cycles.

330 Hours Long Battery Life, Support Your Enduring Training Day and Night

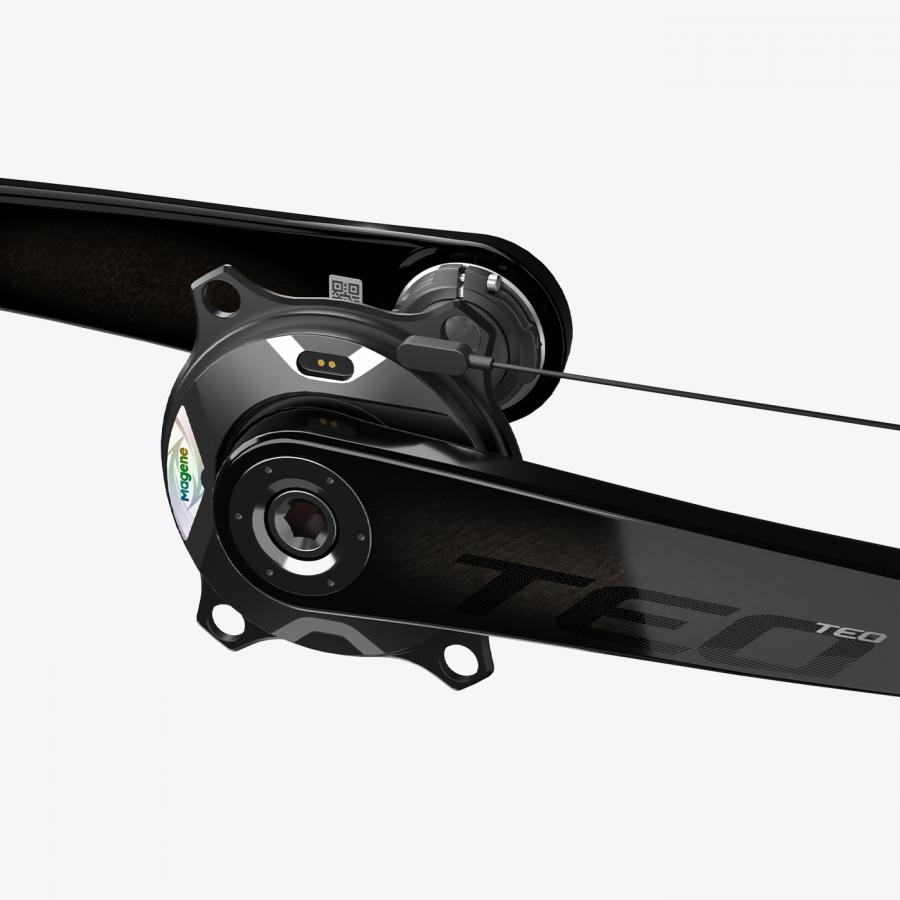

The P515 spider-based power meter applies a new circuit design to effectively improve power consumption efficiency and reduce power loss during cycling. After fully charged, it can support you for up to 330 hours of long-distance riding and training.

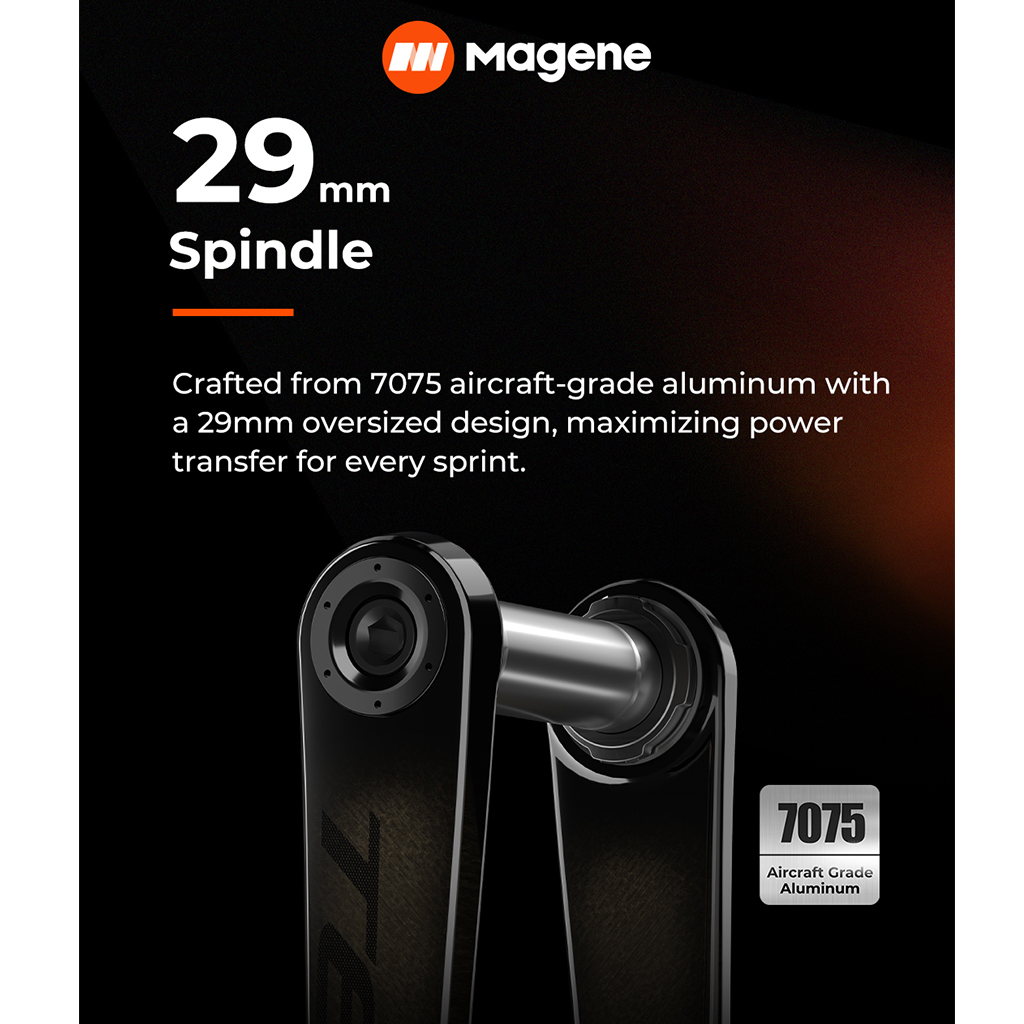

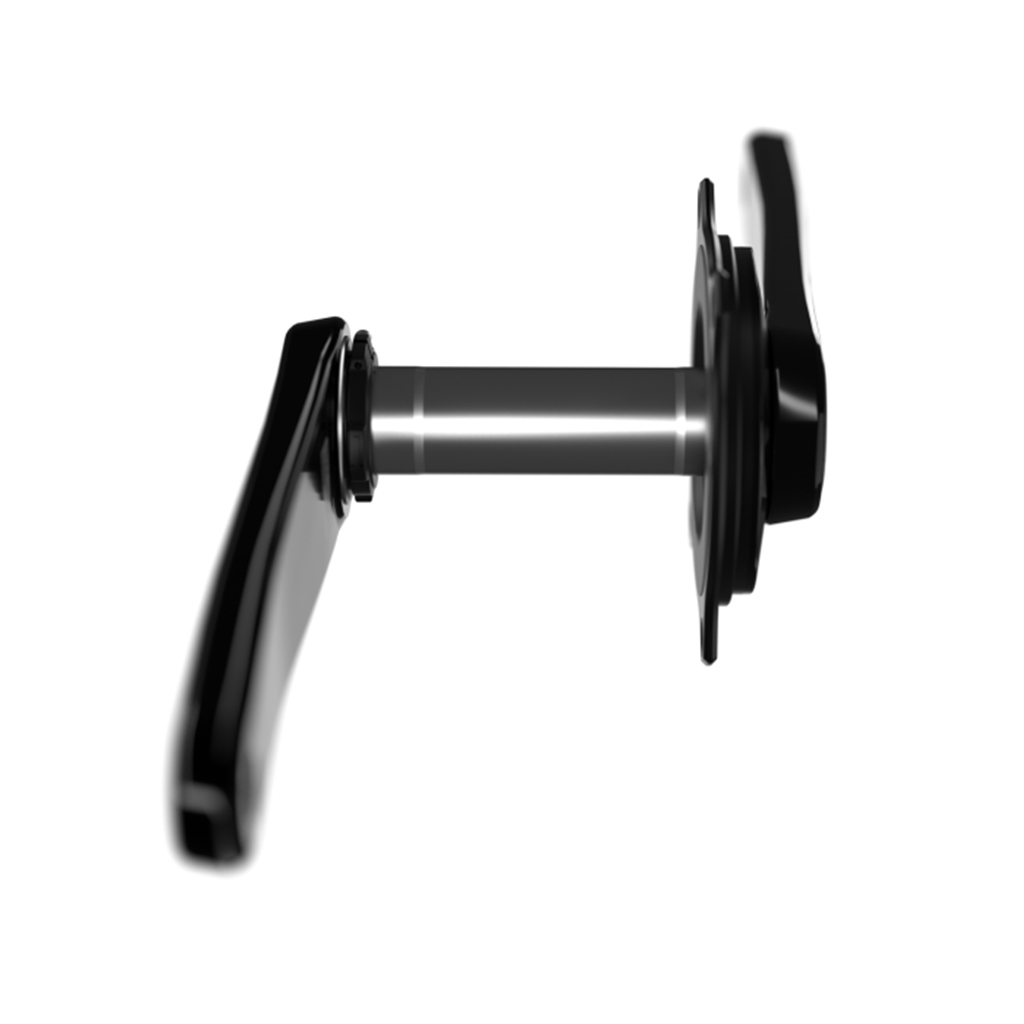

29mm Spindle, Exquisite Balance among Stiffness, Weight and Durability

Spindle is an important structure connecting the frame, and its design technology has a vital influence on the drivetrain efficiency and durability.

TEO spindle is made of 7075 ultra-light aircraft-grade aluminium. The 29mm larger diameter design of has lighter weight, better stiffness and better waterproof performance than the common 24mm steel spindle. The reliable and outstanding performance empowers racers to unleash full sprint potential and sustain peak power output.

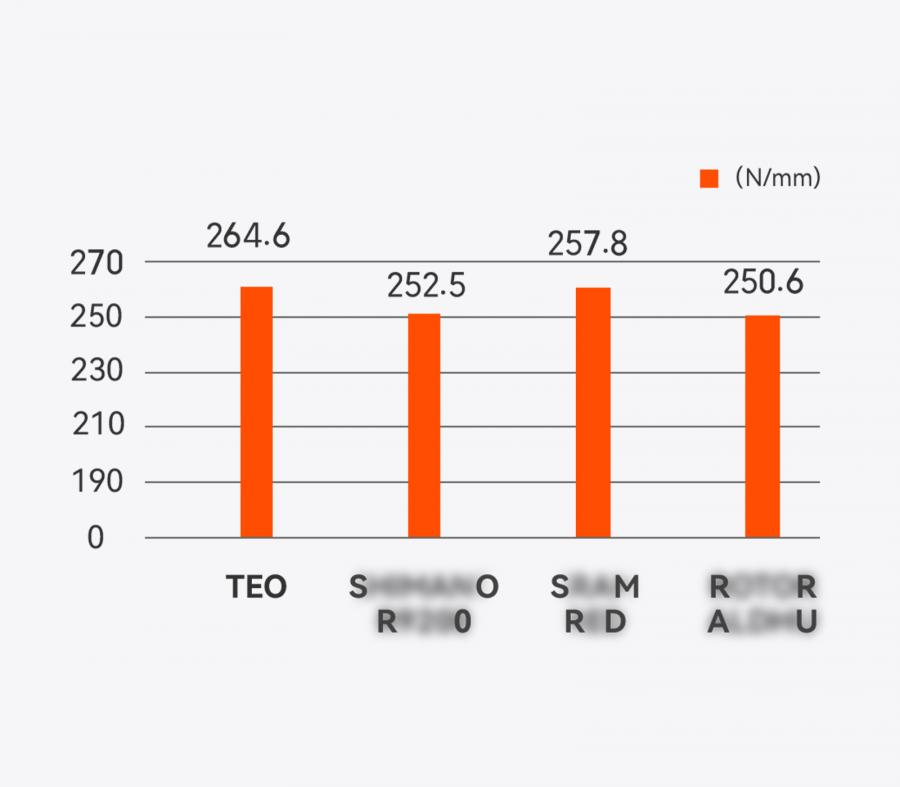

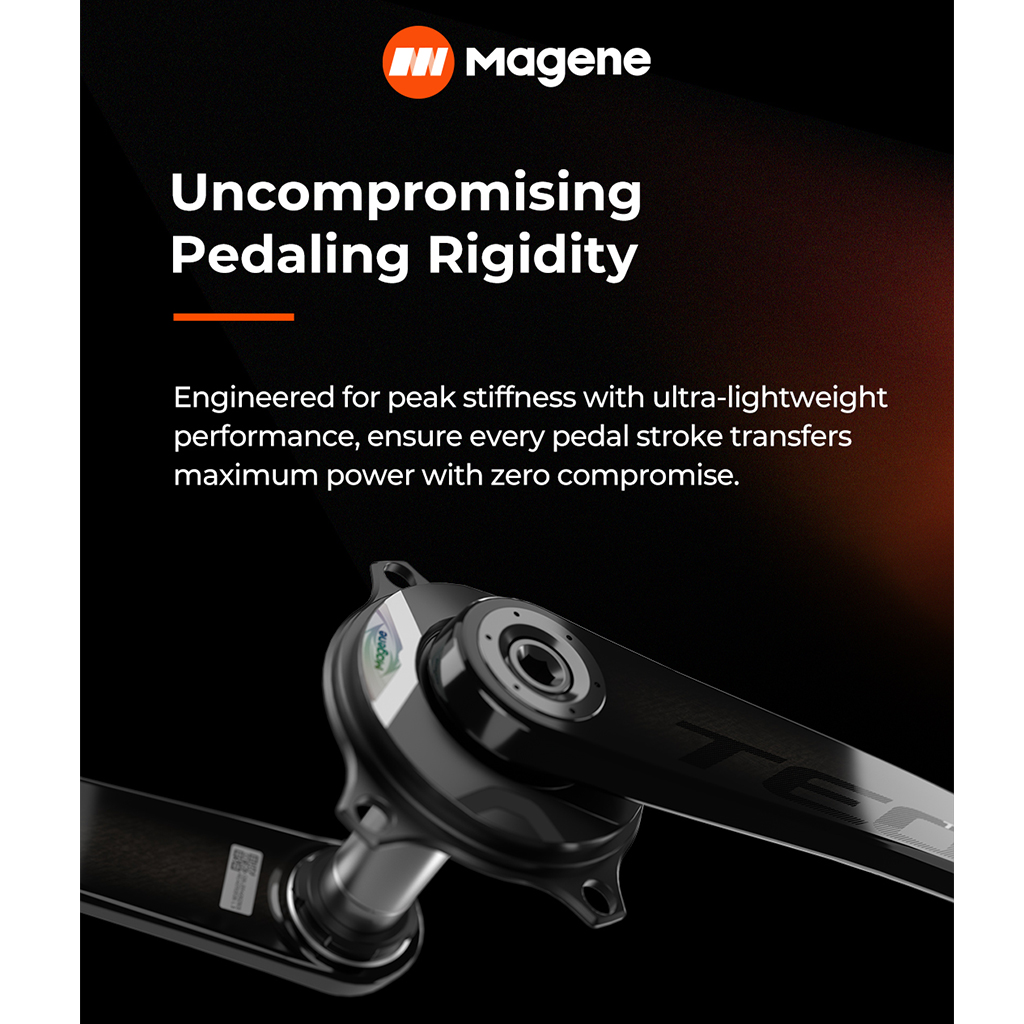

The TEO carbon crank undergo standard compression testing, with a force of 1500N (≈153 kg) applied to each pedal side (35mm position) to measure displacement.

The test proves TEO carbon crank exhibit minimal deformation, demonstrating exceptional stiffness. Rigorously tested, the TEO carbon crank maintain an outstanding stiffness-to-weight ratio without sacrificing ultra-lightweight performance. Every pedal stroke delivers unwavering confidence and your power output is never diminished.

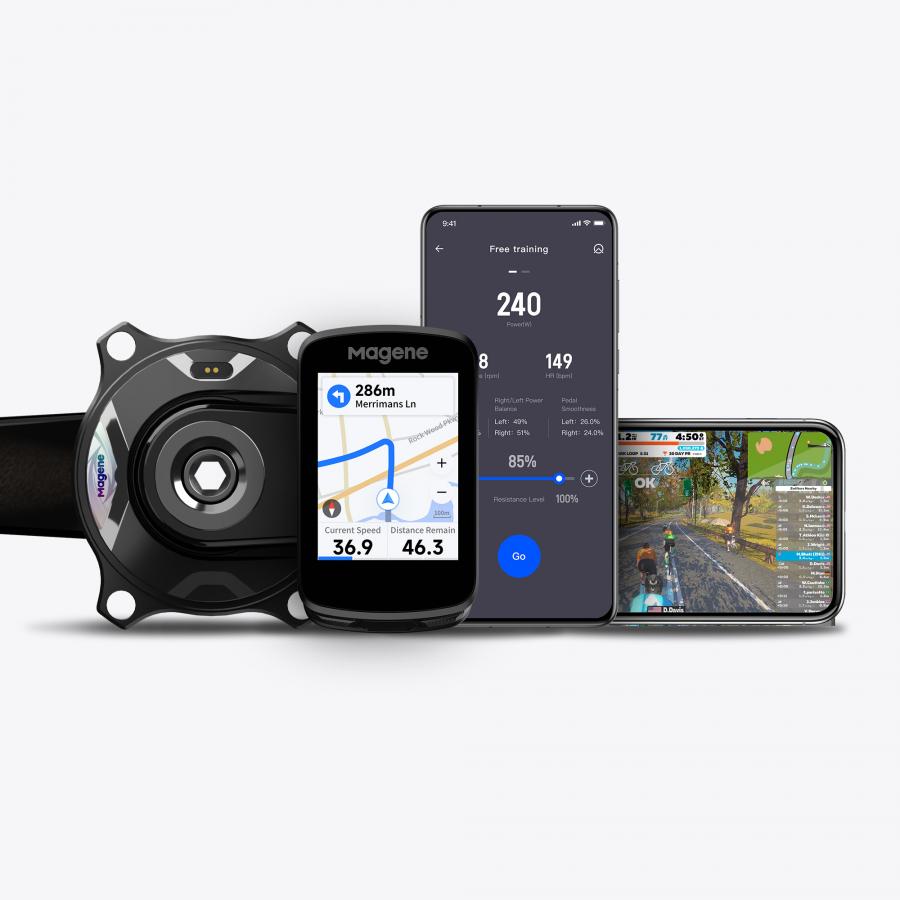

Support Bluetooth, ANT+ Protocol, Record Data in Multiple Terminals

Compatible with various ANT+ and Bluetooth devices, can be connected to major brand bike computers such as Magene, Garmin and Bryton, etc. and training APPs such as STRAVA, Onelap, OnelapFit, Zwift, TrainingPeaks, TrainerRoad, etc. so that you can record data in multiple terminals for one workout.

Complete Power Meter cranket at One Go, Deliver the Ultimate Cycling Experience

TEO P515 power meter set includes P515 spider-based power meter and TEO carbon crank. The considerate bundle eliminates your confusion on choosing compatible components. Therefore, we could provide consistent and reliable performance and you won’t worry about interference problems caused by a third-party component. The crank and spider connects by Magene mounting standard, therefore, the P515 power meter can combine seamlessly with the whole collection of Magene crank.

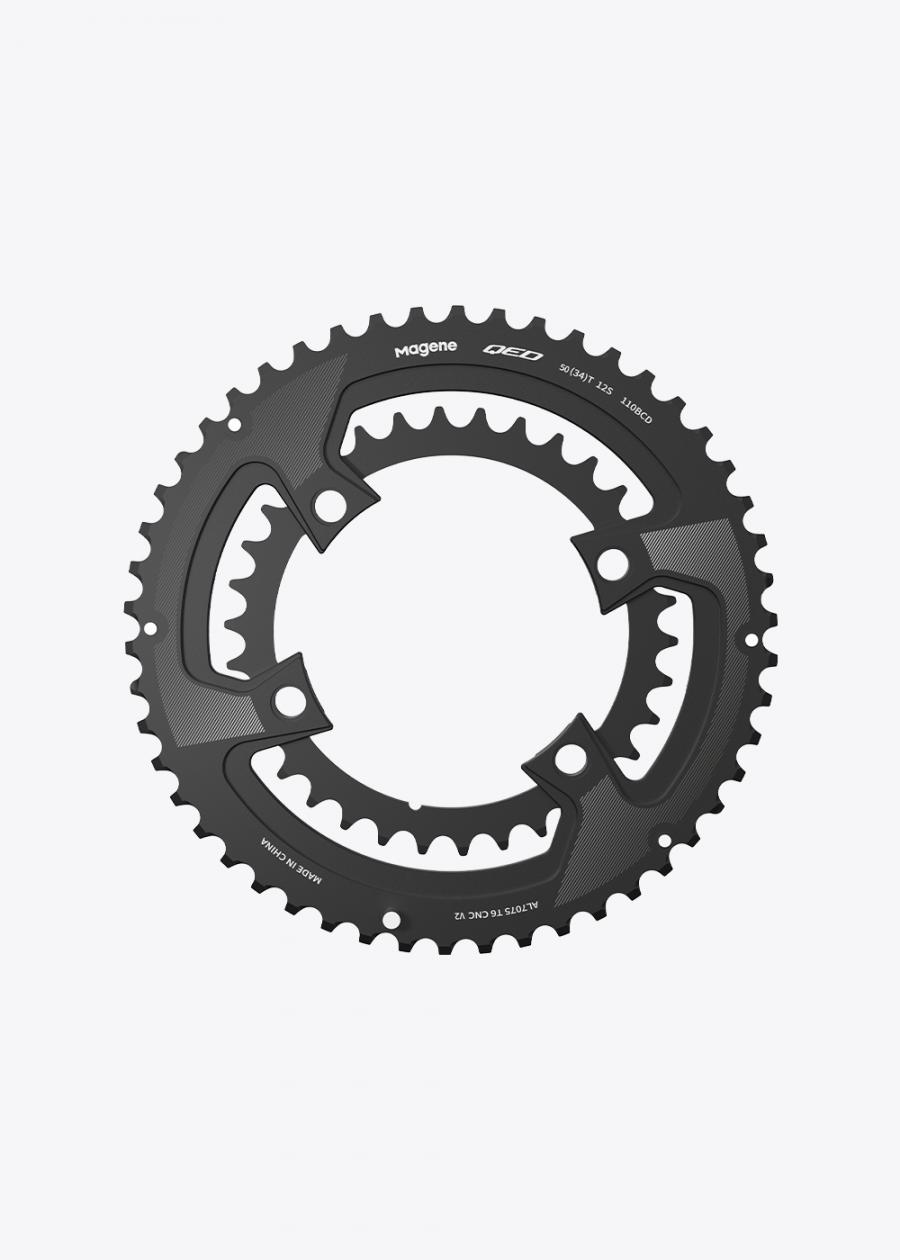

P515 spider-based power meter adopts the widely popular 110BCD four-bolt specification, which has more comprehensive compatibility. In the meantime, we provide exclusive chainring. You can build a complete TEO P515 power meter cranket in terms of your personal needs with QED split chainring. With Magene original chainring, you will enjoy the enhanced shifting efficiency and a more smooth pedaling experience.

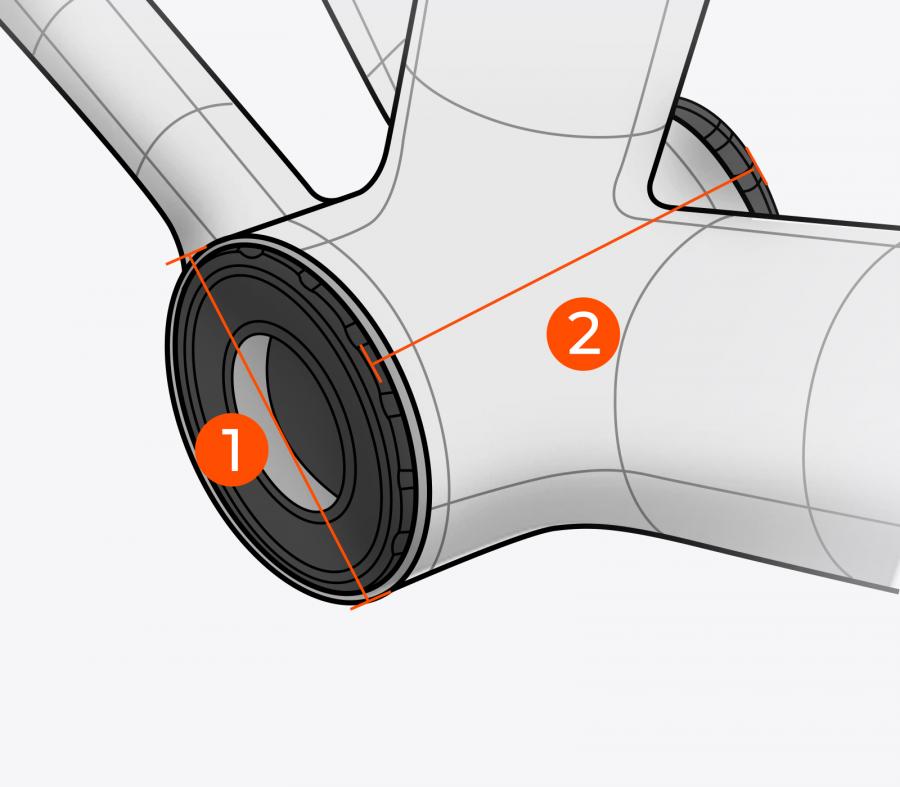

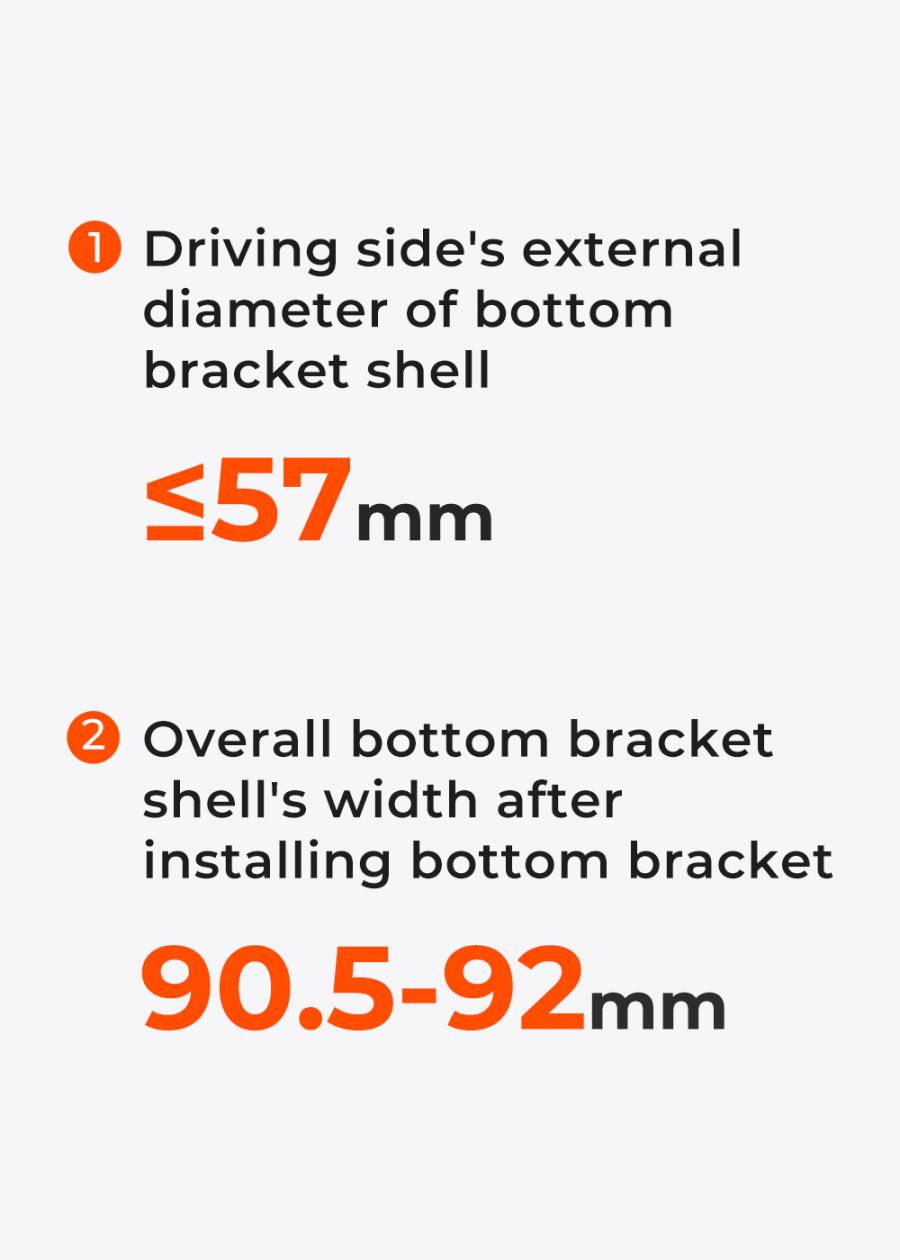

Supports Large-diameter BB

Compatible with large diameter BB including T47 and BB386.
