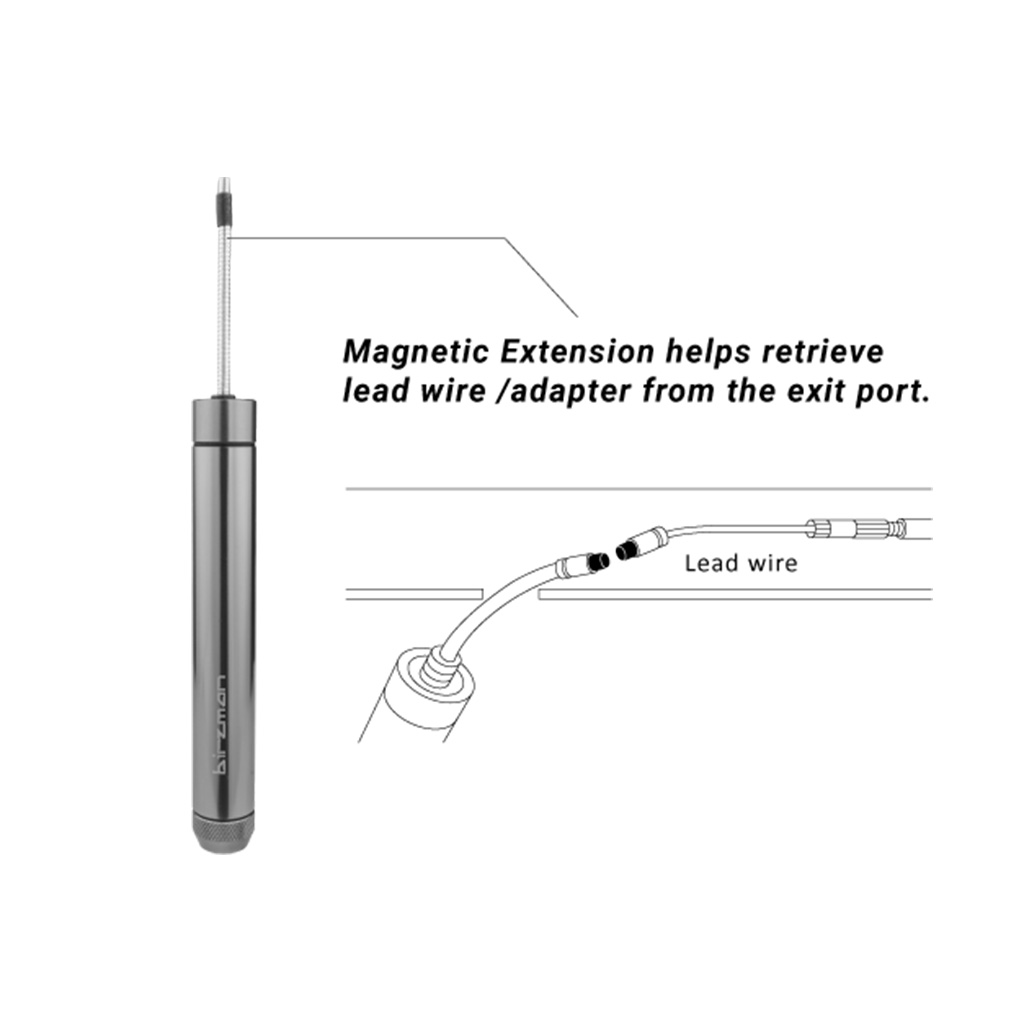

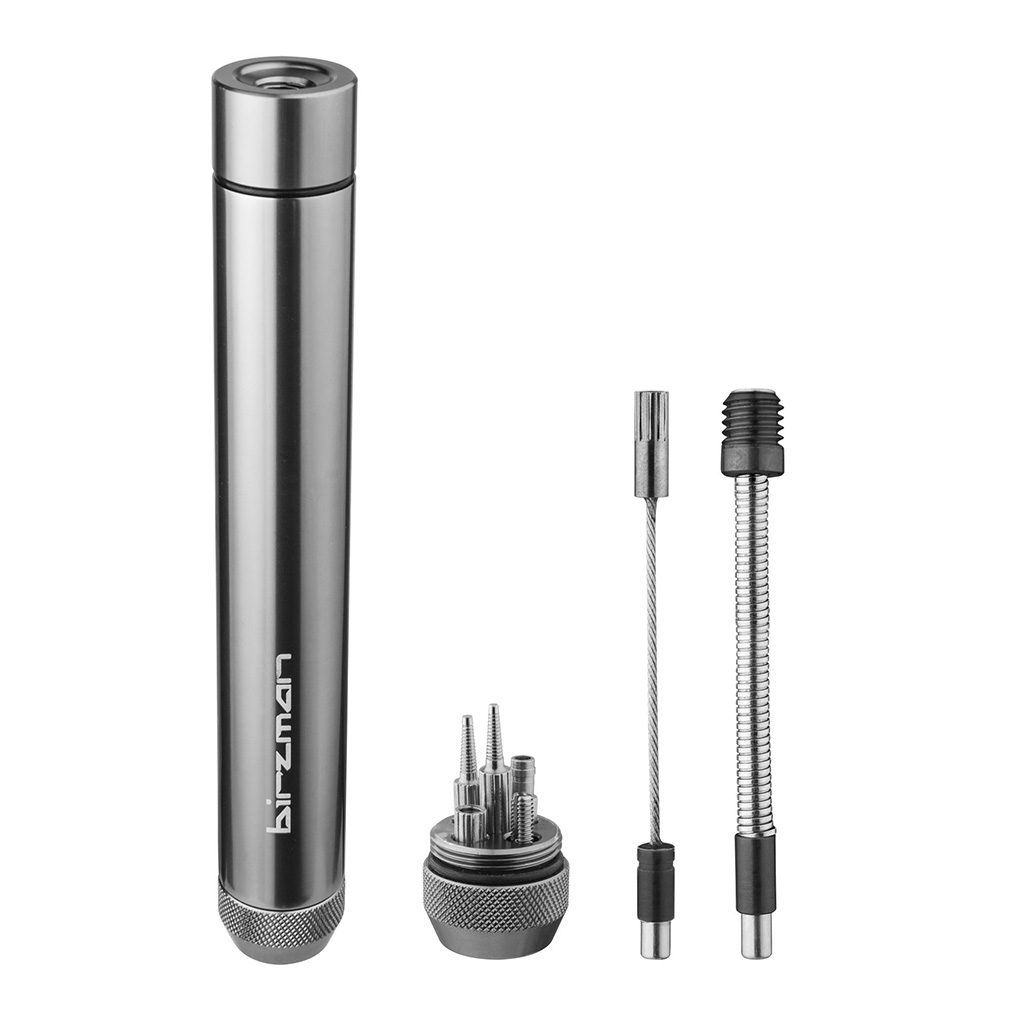

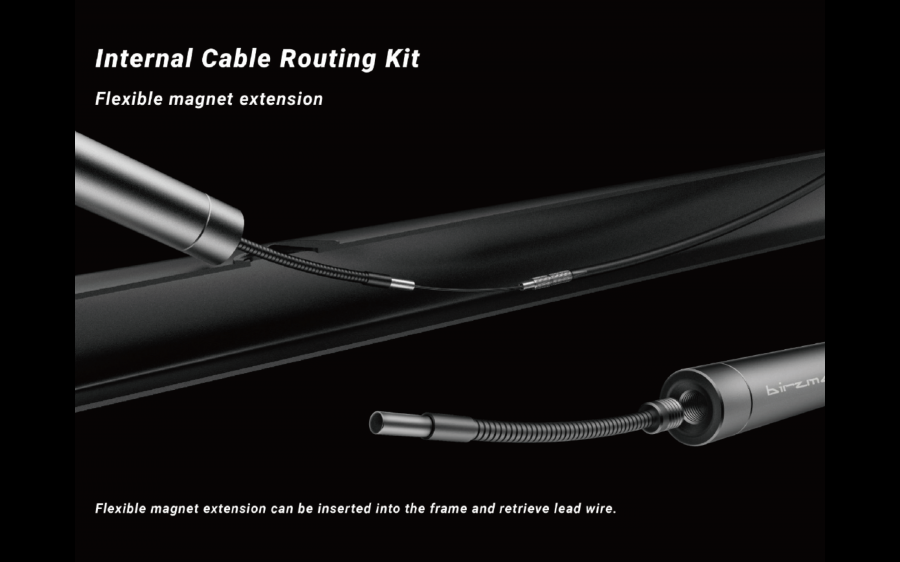

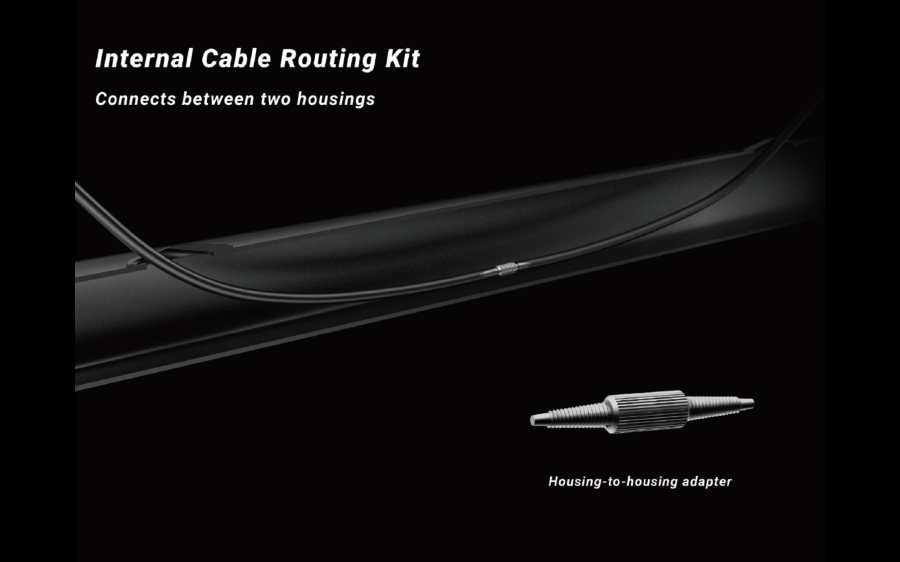

The Internal Cable Routing Kit takes the guesswork out of cable routing by helping guide housings, cables and Di2 electric wires through the frame, with its built-in magnet and interchangeable adapters. The compact kit contains four individual steel adapters, a lead wire for easier movement inside the frame, and a flexible magnet extension used to retrieve an adapter from the exit port.

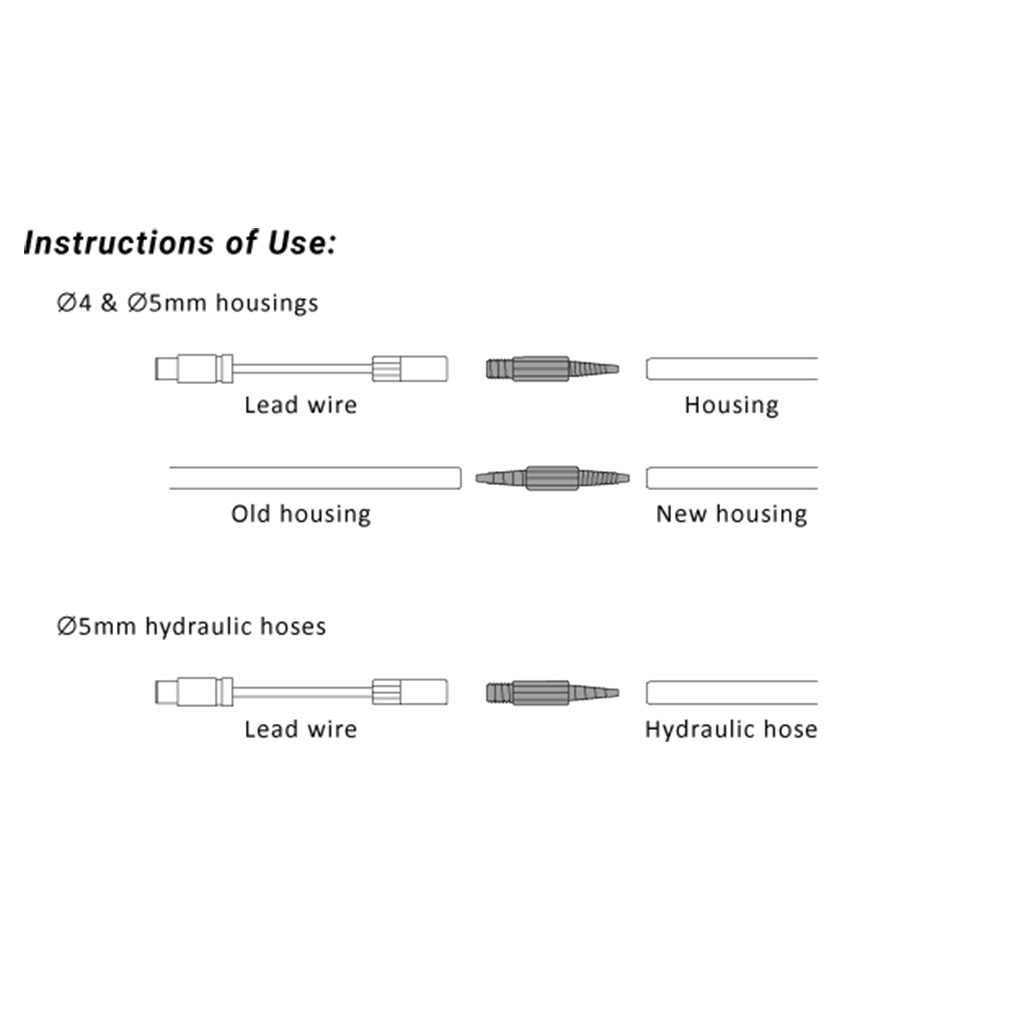

• Ø4 & Ø5mm housings
• Ø5mm hydraulic hoses

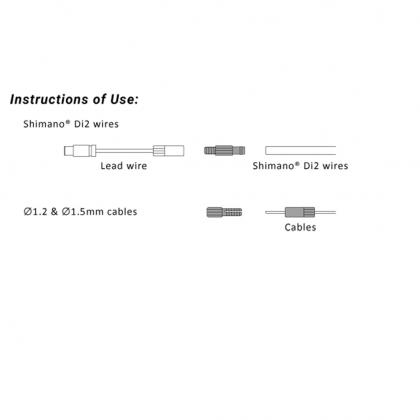

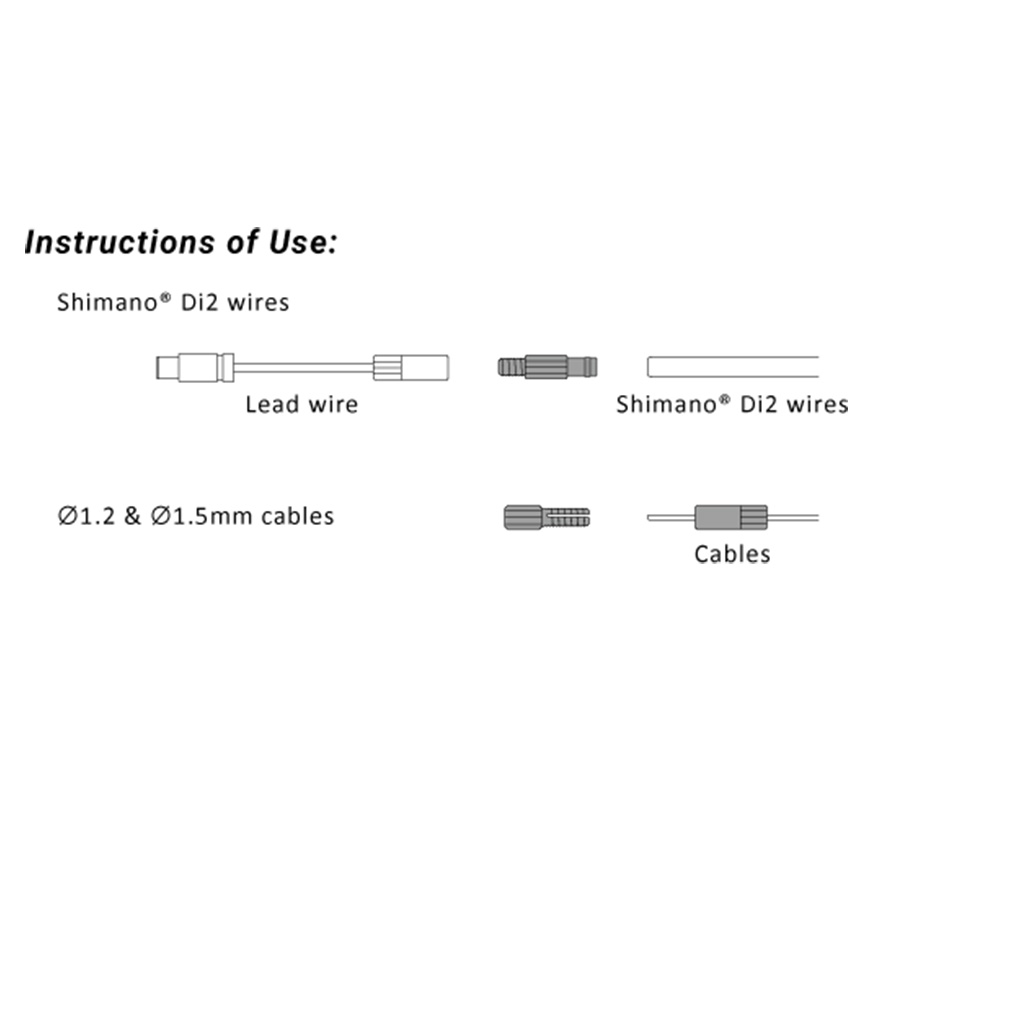

• Shimano® Di2 wires
• Ø1.2 & Ø1.5mm cables

Compatible with aluminium, carbon fiber and titanium bicycle frames. Please trim off damaged / frayed cable ends or uneven housing ends to allow secure attachment with the adapter. Once the adapter is removed from a hydraulic hose, please cut 10mm off the end to ensure engagement with the brass insert.

• Magnetic tool that assists internal routing by guiding adapters through the frame.

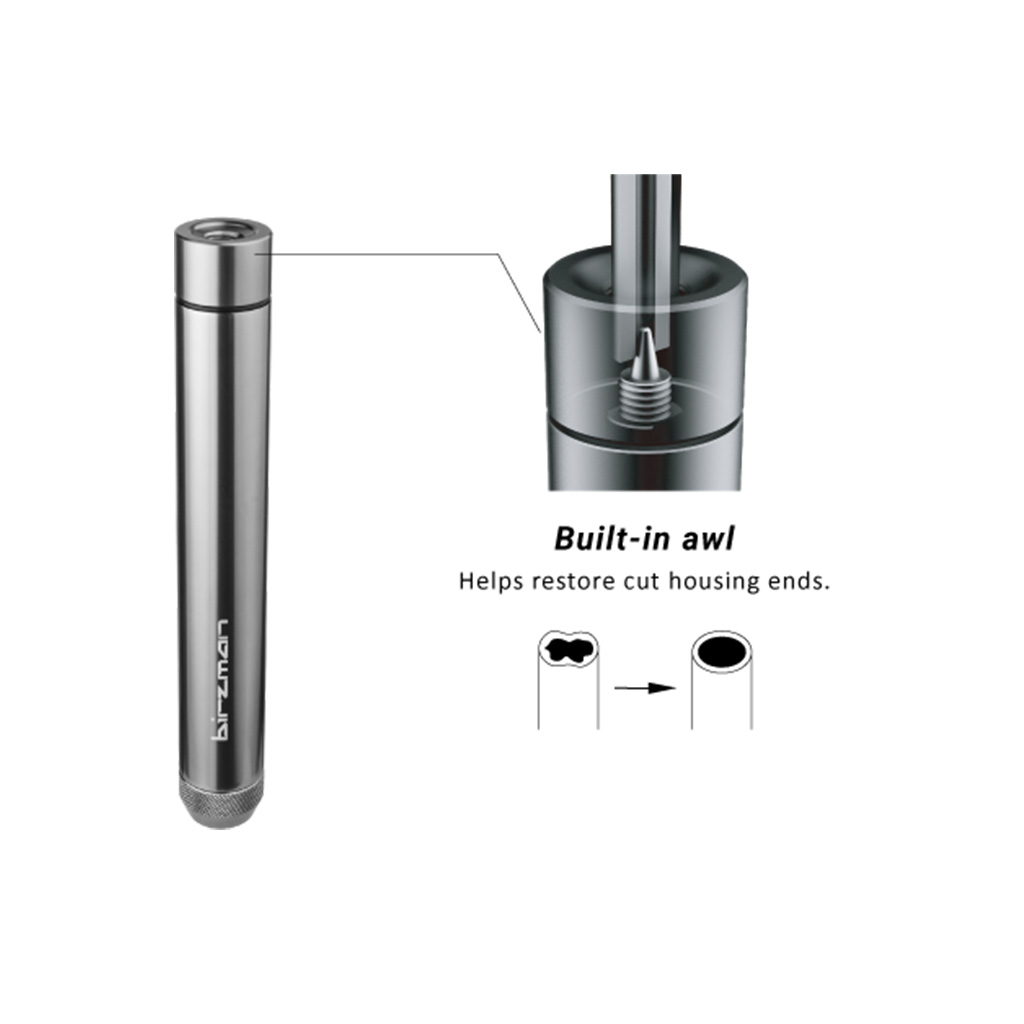

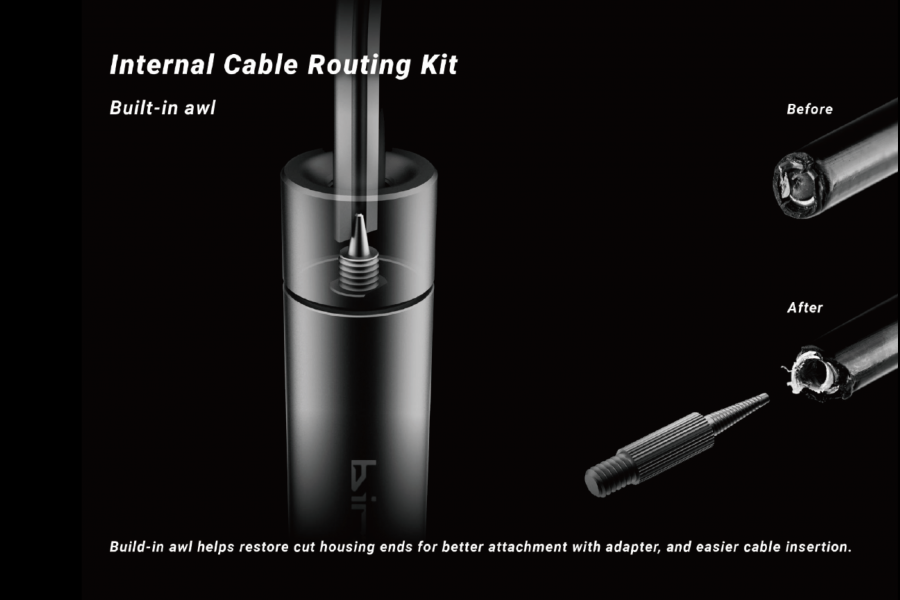

• Built-in awl helps restore cut housing ends for easier attachment with adapter and cable insertion.

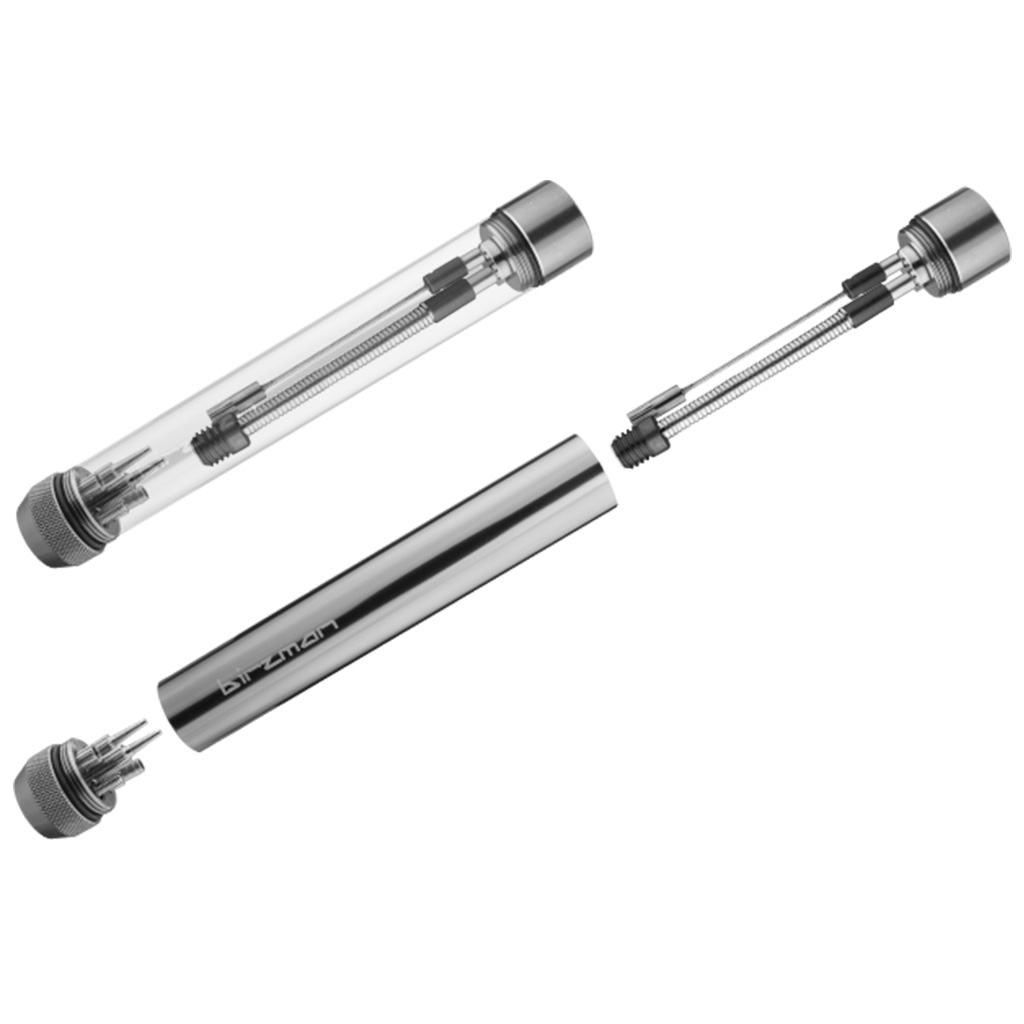

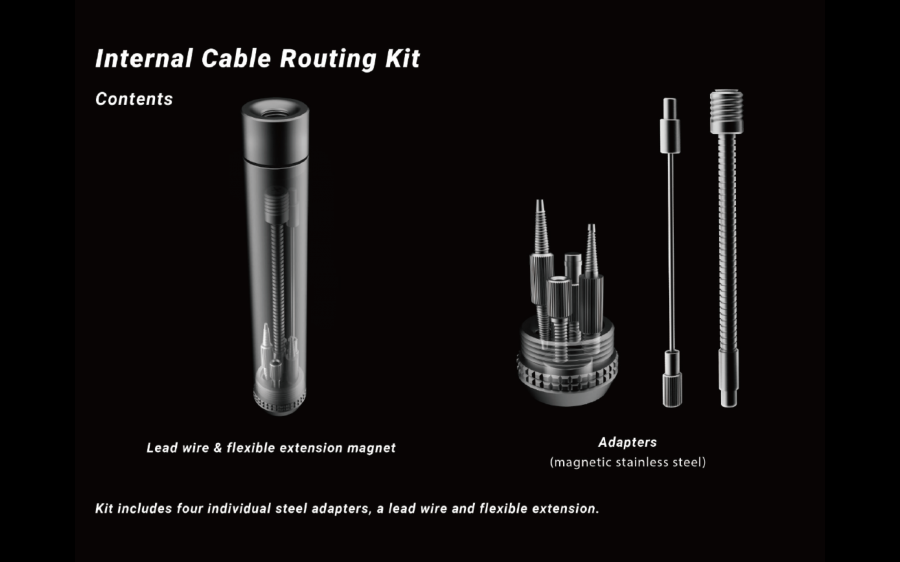

• Contents include 4 x individual adapters, a lead wire and a flexible magnetic extension.

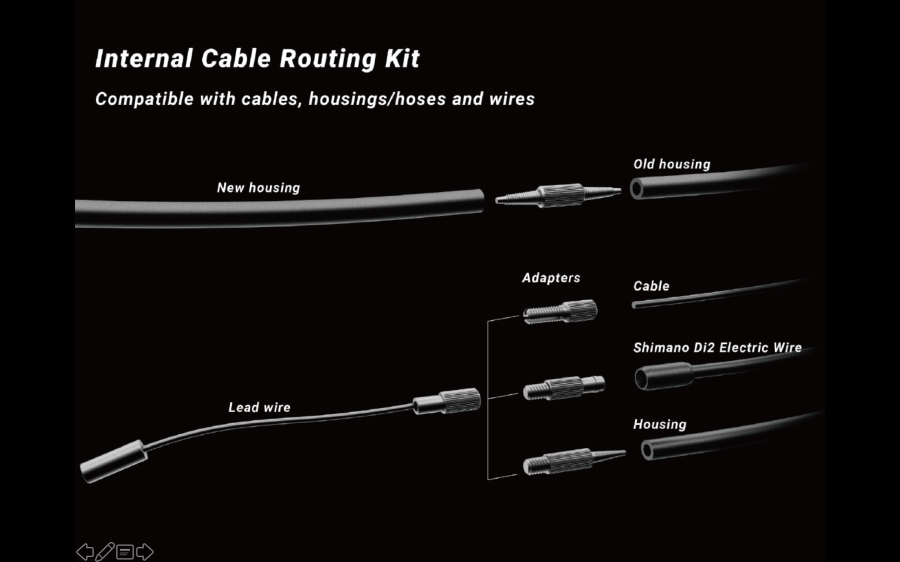

• Compatible with cables, housings/hoses and wires.

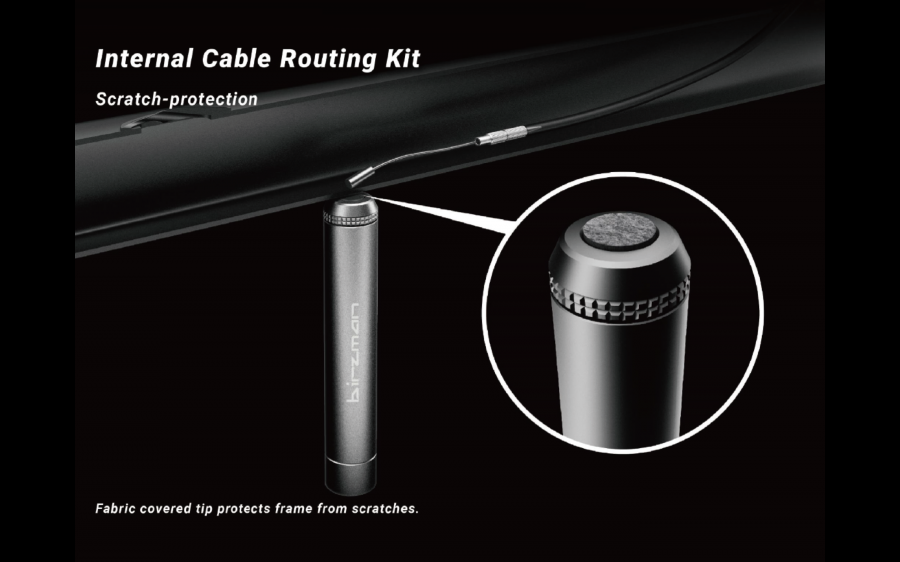

• Fabric covered tip protects frame from scratches.
• Material: 6061 Aluminium / Alloy Steel / Copper
• Size: Ø21 x 120mm
